T6178AM-LTE-S

Antennas RF Overview

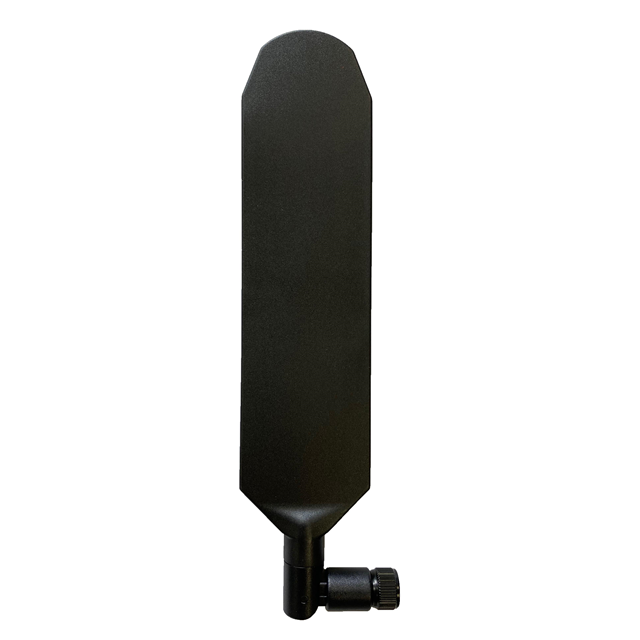

The T6178AM-LTE-S is an LTE blade-type antenna manufactured by Nearson Inc., featuring an SMA connector. It supports multi-band operation for LTE, GSM, GPRS, and WiFi applications. The antenna operates across two frequency bands: 700MHz to 960MHz with a center frequency of 830MHz, and 1.71GHz to 2.7GHz with a center frequency of 2.205GHz. This RoHS-compliant component is designed for reliable wireless communication in mobile devices.

Antennas RF Feature Summary

• Blade type design with tilt capability
• Multi-band support for LTE, GSM, GPRS, and WiFi
• SMA connector interface

Antennas RF Applications

• LTE mobile devices
• GSM/GPRS communication equipment
• WiFi enabled handheld devices

Antennas RF Procurement Notes

Verify part authenticity through official Nearson Inc. channels or authorized distributors. Confirm RoHS compliance status and specific connector orientation upon receipt. Request updated datasheets for latest revision details. Ensure storage conditions meet manufacturer specifications to maintain performance integrity.

Antennas RF Selection Notes

Select this model when a compact blade antenna is required for multi-band cellular and WiFi integration. The SMA interface ensures compatibility with standard RF connectors. Consider the physical dimensions and tilt angle requirements for device integration. Verify frequency band coverage matches target network specifications.

Antennas RF Part Context

This component belongs to the Nearson 6178 series of antennas. It is specifically engineered for LTE and legacy cellular technologies. The blade form factor allows for low-profile installation in portable electronics. It complements other RF components in wireless communication modules.

Antennas RF Replacement Considerations

Check for direct substitutes within the Nearson 6178 series. Verify identical frequency ranges and connector types before substitution. Ensure mechanical fit and electrical performance match original requirements.
