Product Detailed Parameters

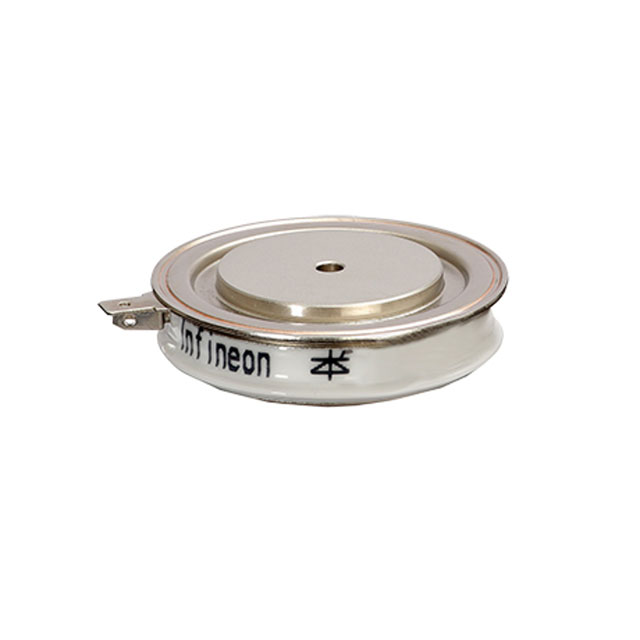

- Description：SCR MODULE 1800V 1250A DO200AA
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：1.8 kV
- Current - On State (It (AV)) (Max)：644 A
- Current - On State (It (RMS)) (Max)：1250 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：9400A @ 50Hz
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Clamp On
- Package / Case：DO-200AA, A-PUK
- Voltage - Gate Trigger (Vgt) (Max)：2.2 V
- Current - Gate Trigger (Igt) (Max)：250 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview
The T640N16TOFXPSA1 is a phase control thyristor module manufactured by Infineon Technologies. It features a rated average on-state current of 640 A and a repetitive peak reverse voltage of 1600 V. The device utilizes silicon technology and is housed in a tray package with an approximate unit weight of 110 g. This component belongs to the SCR modules sub-category and is designed for high-power industrial applications requiring robust phase control capabilities.
Feature Summary
- Engineered as a phase control thyristor module for precise power regulation
- Constructed using silicon semiconductor technology for reliable operation
- Designed for integration into industrial power conversion systems
Applications
- Industrial motor drives
- Power supply units
- Resistive load control systems
Procurement Notes
Verify the exact ordering suffix against official Infineon documentation to ensure correct configuration, as suffixes may indicate specific manufacturing variants or packaging differences. Confirm RoHS compliance status through the manufacturer's latest product data sheet before procurement. Cross-reference the Mouser part number 641-t640n16tof for accurate identification during sourcing processes.
Selection Notes
Select this component based on the required 640 A current handling and 1600 V blocking voltage specifications. Ensure the application environment supports the thermal management requirements associated with this module size. Verify compatibility with existing gate drive circuits and mechanical mounting constraints within the target assembly design.
Part Context
This part is identified by the alias SP000784012 and falls under the broader thyristor category. It shares the T640N16TOF designation with related variants. The component is listed alongside other Infineon SCR modules such as the T560N16TOF, indicating its position within the manufacturer's standard phase control portfolio.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Infineon technical support or authorized distributors for validated cross-references that meet identical electrical and mechanical specifications.
