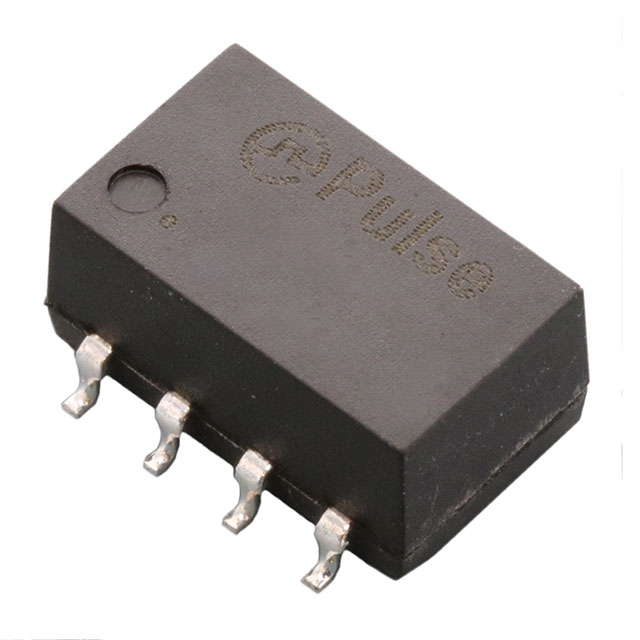

T8003NLT

$2.98

Description：CMC 4LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:398505eac261 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 4LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：4
Current Rating (Max)：-
DC Resistance (DCR) (Max)：200mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.450" L x 0.265" W (11.43mm x 6.73mm)
Height (Max)：0.220" (5.59mm)
Package / Case：Vertical, 8 Gull Wing
Inductance @ Frequency：-
Impedance @ Frequency：-

Download product information

T8003NLT

Overview

The T8003NLT is a surface-mount common mode choke manufactured by Pulse Electronics. It features four lines and an inductance of 33 µH with a maximum DC resistance of 0.2 Ohms. The component is designed for SMD mounting and serves as a filter for signal integrity.

Feature Summary

Provides common mode noise suppression for multi-line circuits
Surface mount construction for automated assembly

Applications

Audio signal filtering
General purpose EMI suppression

Procurement Notes

Verify the specific datasheet revision to confirm electrical tolerances and pinout configurations before integration. Ensure the supplier provides original manufacturer documentation to validate authenticity and compliance with current RoHS standards.

Selection Notes

Select this component for applications requiring four-line common mode chokes with low DC resistance. Verify that the 33 µH inductance meets the target frequency attenuation requirements for the specific signal lines involved.

Part Context

This part belongs to the Pulse Electronics common mode choke portfolio, specifically engineered for surface-mount technology. It addresses electromagnetic interference in compact electronic designs requiring multi-channel noise filtering capabilities.

Replacement Considerations

Consult official distributor catalogs for verified substitute part numbers from Pulse Electronics or equivalent manufacturers that match the 4-line configuration and 33 µH specification.
