T8006NL

Overview

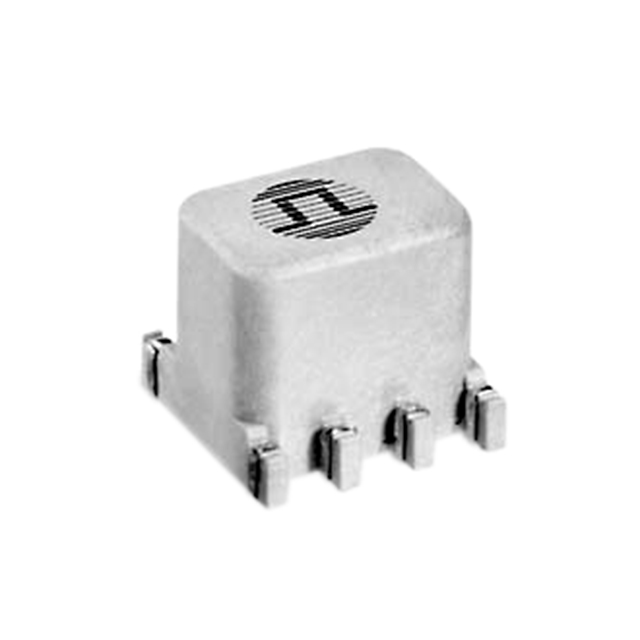

The T8006NL is a surface-mount common mode choke manufactured by Pulse Electronics Corporation. It features a four-line configuration with an inductance of 470 µH at 100 kHz and a maximum DC resistance of 600 mOhms. This component is designed for SMD installation to provide electromagnetic interference filtering in electronic circuits.

Feature Summary

• Four-line common mode choke design
• Surface mount technology construction

Applications

• Electromagnetic interference filtering

Procurement Notes

Verify the specific datasheet version for the T8006NL to confirm exact electrical tolerances and thermal ratings. Ensure compatibility with surface mount assembly processes. Confirm that the four-line configuration meets the circuit requirements. Check for any RoHS compliance documentation if required by the manufacturing standard.

Selection Notes

Select this component when a four-line common mode choke is required for surface mount applications. The 470 µH inductance value should be evaluated against the target frequency range of 100 kHz. Verify that the 600 mOhm DC resistance fits within the power loss constraints of the design.

Part Context

This part belongs to the common mode chokes category from Pulse Electronics. It serves as an EMI suppression component, distinct from audio or signal transformers listed in similar product searches. The four-line structure differentiates it from standard two-line chokes.

Replacement Considerations

No public substitute part numbers are confirmed in the provided data.
