T8008NL

Overview

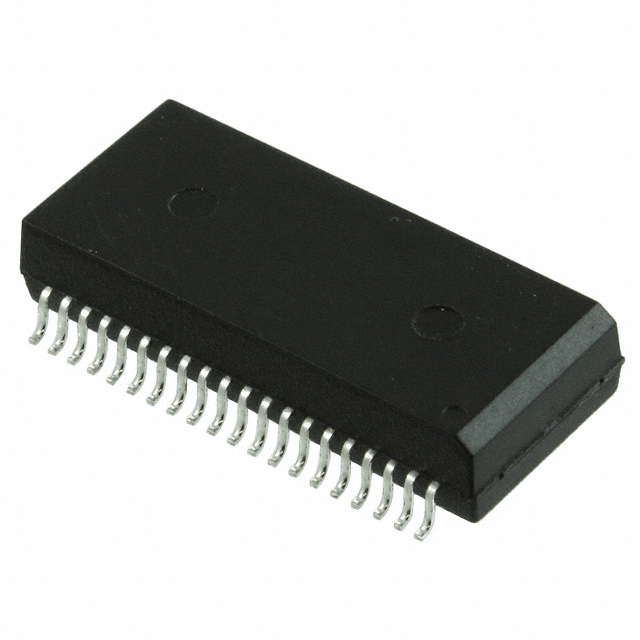

The T8008NL is a 16-line common mode choke manufactured by Pulse Electronics, designed for surface mount installation. It features a primary inductance of 47 µH and a maximum DC resistance of 400 mOhms. The component operates within a temperature range of -40°C to +85°C and measures 8.9 mm x 6.3 mm x 3.9 mm. It provides common mode attenuation ranging from 13 dB at 100 kHz to 26 dB at 300 MHz.

Feature Summary

• Designed specifically for quad port T1/E1 applications
• Provides high-performance EMI reduction for multiplexers and channel routers
• Supports ISP server environments with significant common mode attenuation

Applications

• Quad Port T1/E1 systems
• Multiplexer equipment
• Channel routers
• ISP servers

Procurement Notes

Verify the specific datasheet version when sourcing, as electrical parameters such as attenuation values may vary slightly between revisions. Confirm that the 16-line configuration matches the target circuit design requirements before finalizing procurement decisions.

Selection Notes

Select this component for designs requiring robust EMI suppression in telecommunications infrastructure. Ensure the PCB footprint accommodates the specified dimensions and that the operating temperature range aligns with the environmental conditions of the intended deployment scenario.

Part Context

This part belongs to Pulse Electronics' network transformer and filter portfolio, focusing on signal integrity solutions for digital communication lines. It serves as a critical passive component for maintaining signal quality in high-speed data transmission networks.

Replacement Considerations

T8008NLT is listed as a parameter equivalent substitute.
