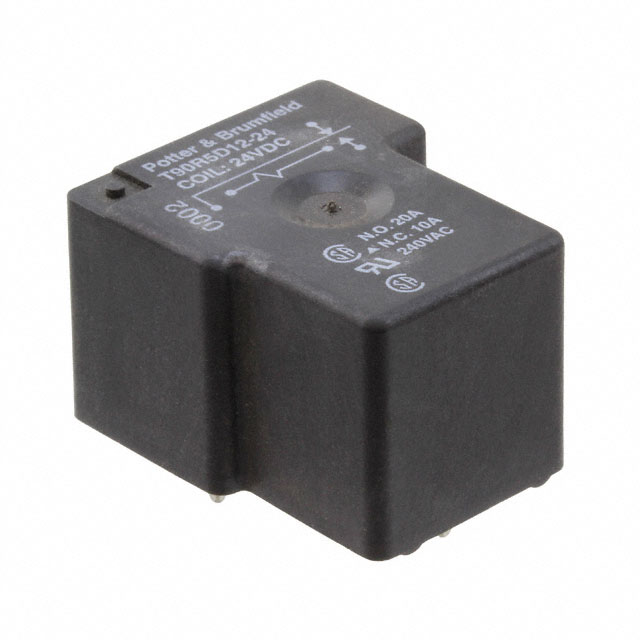

Power Relays, Over 2 Amps T90R5D12-24 product image

T90R5D12-24

$5.28

Description：RELAY PWR 277V
Series：T90
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Bulk

SKU:8f9230242fcc Category: Power Relays, Over 2 Amps Brand: TE Connectivity Potter & Brumfield Relays

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

T90R5D12-24 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY PWR 277V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for T90R5D12-24

Description：RELAY PWR 277V
Series：T90
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Bulk
Mounting Type：Through Hole
Coil Voltage：24VDC
Contact Form：SPDT (1 Form C)
Contact Rating (Current)：30 A
Switching Voltage：277VAC - Max
Load - Max Switching：4155VA
Coil Current：36.4 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：-
Coil Insulation：Class F
Must Operate Voltage：18 VDC
Must Release Voltage：2.4 VDC
Operating Temperature：-55°C ~ 85°C
Contact Material：Silver Cadmium Oxide (AgCdO)
Approval Agency：CSA, UR
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：15 ms
Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for T90R5D12-24

T90R5D12-24
