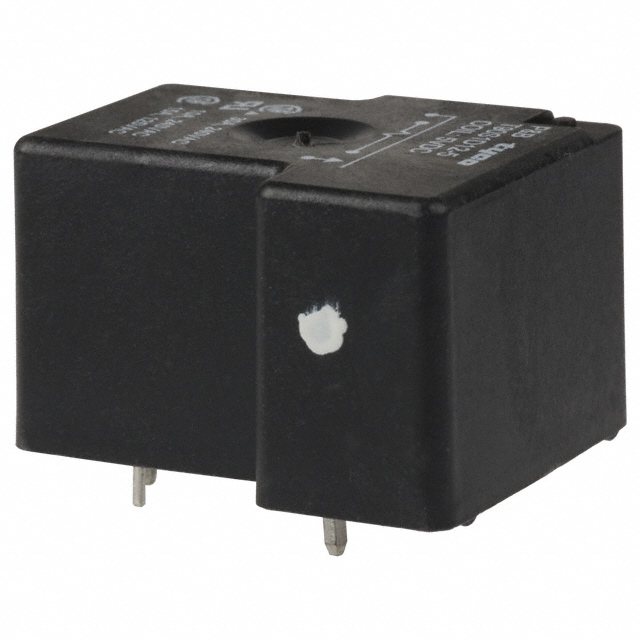

T90S5D12-48

T90S5D12-48 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 20A 48V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for T90S5D12-48

• Description：RELAY GEN PURPOSE SPDT 20A 48V
• Series：T90
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk,Bulk
• Mounting Type：Through Hole
• Coil Voltage：48VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：20 A
• Switching Voltage：277VAC - Max
• Load - Max Switching：4155VA
• Coil Current：19 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：Class F
• Must Operate Voltage：36 VDC
• Must Release Voltage：4.8 VDC
• Operating Temperature：-55°C ~ 85°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for T90S5D12-48
