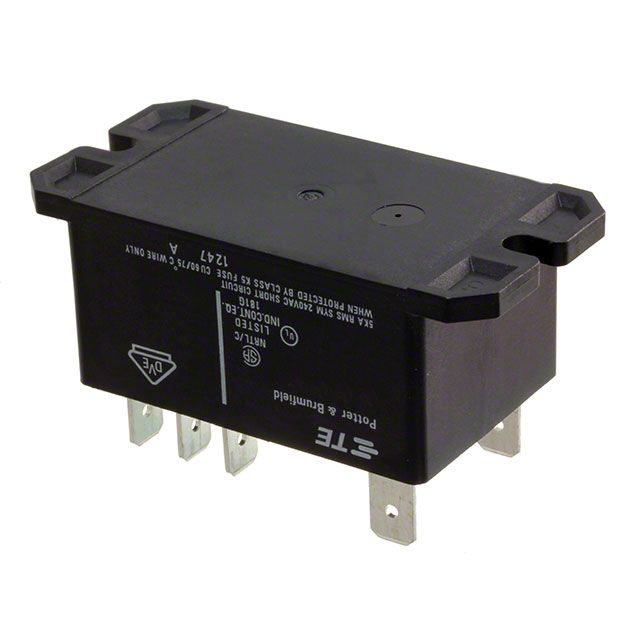

T92P11D22-12

T92P11D22-12 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE DPDT 30A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for T92P11D22-12

• Description：RELAY GEN PURPOSE DPDT 30A 12V
• Series：T92
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tray
• Mounting Type：Chassis Mount
• Coil Voltage：12VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：30 A
• Switching Voltage：600VAC - Max
• Load - Max Switching：18000VA
• Coil Current：140 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：9 VDC
• Must Release Voltage：1.2 VDC
• Operating Temperature：-55°C ~ 85°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for T92P11D22-12
