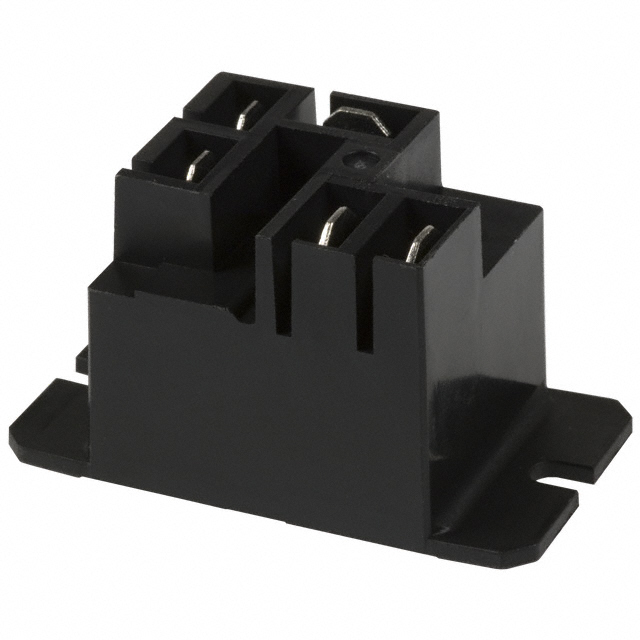

T9AP1D52-36-01

T9AP1D52-36-01 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPST 30A 36V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for T9AP1D52-36-01

• Description：RELAY GEN PURPOSE SPST 30A 36V
• Series：T9A
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：36VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：30 A
• Switching Voltage：277VAC - Max
• Load - Max Switching：8310VA
• Coil Current：27.8 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Quick Connect - 0.187"/0.250"
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：27 VDC
• Must Release Voltage：3.6 VDC
• Operating Temperature：-55°C ~ 85°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for T9AP1D52-36-01
