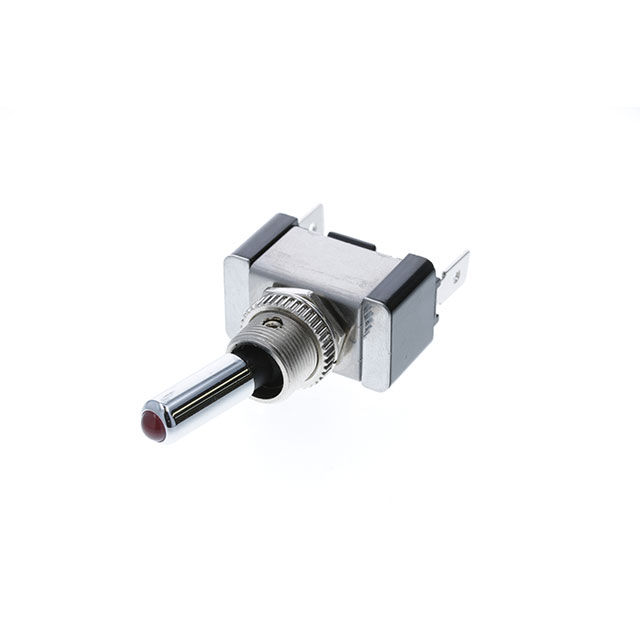

TA1B-1A-DC-1-RL

TA1B-1A-DC-1-RL is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SP OFF-ON RED LED M12X0.75. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for TA1B-1A-DC-1-RL

• Description：SP OFF-ON RED LED M12X0.75
• Series：TA1B
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：20A (DC)
• Voltage Rating - AC：-
• Voltage Rating - DC：12 V
• Actuator Type：Standard Round
• Actuator Length：19.40mm
• Illumination：Illuminated
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：12 VDC
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Panel Cutout Dimensions：Circular - 12.20mm Dia
• Bushing Thread：M12 x 0.75
• Ingress Protection：-
• Features：-
• Operating Temperature：-20°C ~ 85°C

Toggle Switches datasheet and documents for TA1B-1A-DC-1-RL
