TA2418A

Overview

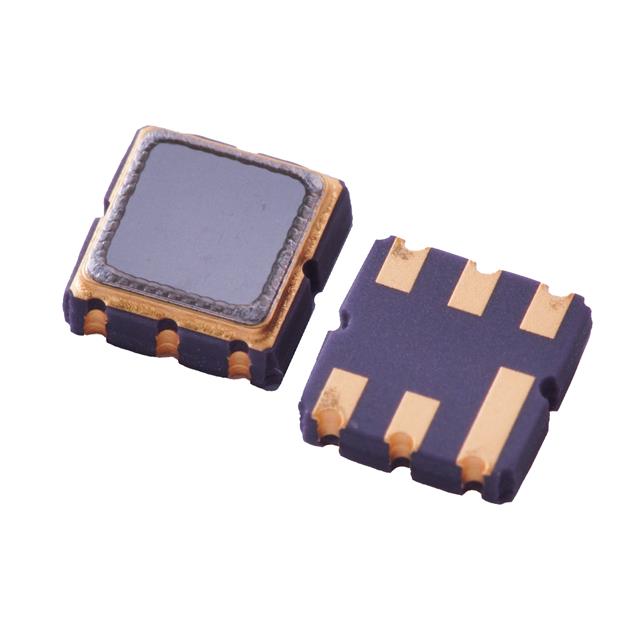

The TA2418A is a Surface Acoustic Wave (SAW) band-pass filter manufactured by Tai-Saw Technology Co., Ltd. Designed for wireless RF applications, this component operates at a center frequency of 482 MHz with a bandwidth of 24 MHz. It features a low insertion loss of 3.5 dB and is housed in a compact 6-SMD, no-lead package measuring 3.8 x 3.8 mm.

Feature Summary

• Utilizes Surface Acoustic Wave technology for efficient radio frequency signal filtering
• Provides precise band-pass characteristics centered at 482 MHz
• Engineered for compact integration in wireless communication modules

Applications

• Wireless RF systems
• Radio frequency signal processing
• Communication device front-end modules

Procurement Notes

Verify the manufacturer designation as Tai-Saw Technology Co., Ltd. when sourcing. Confirm the specific package type is 6-SMD, no lead, and dimensions are 3.8x3.8 mm. Ensure the center frequency is 482 MHz and bandwidth is 24 MHz to match system requirements. Request official datasheets to validate insertion loss specifications of 3.5 dB before finalizing procurement decisions.

Selection Notes

Select this component for applications requiring a 482 MHz center frequency with a 24 MHz bandwidth. The 3.5 dB insertion loss makes it suitable for sensitive RF chains. The SMD package facilitates automated assembly. Verify compatibility with operating frequencies and physical space constraints within the target electronic device design.

Part Context

Tai-Saw Technology specializes in SAW components for mobile phones, base stations, and wireless LANs. The TA2418A belongs to their RF SAW filter series, supporting global wireless standards. This product line addresses the demand for high-performance, miniaturized filters in modern telecommunications infrastructure and consumer electronics.

Replacement Considerations

Cross-reference with other 482 MHz SAW filters from different manufacturers if supply constraints exist. Ensure substitute parts maintain identical 24 MHz bandwidth and 3.5 dB insertion loss specifications. Verify pinout compatibility for the 6-SMD package to avoid redesigning the PCB layout during replacement.
