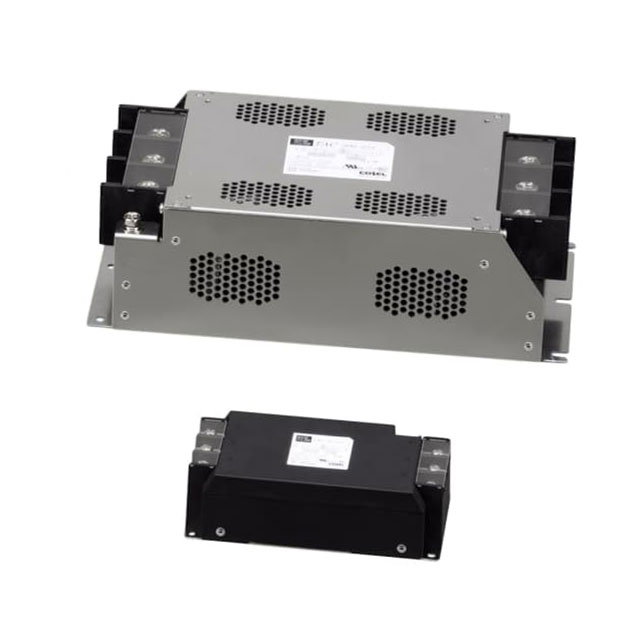

TAC-50-333

$155.64

Description：LINE FILTER 500VAC 50A CHASS MNT
Series：TAC
Mfr：Cosel USA, Inc.
Package：Box

SKU:efaefba30b64 Category: Power Line Filter Modules Brand: Cosel USA, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TAC-50-333 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is LINE FILTER 500VAC 50A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for TAC-50-333

Description：LINE FILTER 500VAC 50A CHASS MNT
Series：TAC
Mfr：Cosel USA, Inc.
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：500V
Current：50 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, VDE
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for TAC-50-333

TAC-50-333

Power Line Filter Modules Overview

The TAC-50-333 is a three-phase (Wye) EMC/EMI line filter module manufactured by Cosel USA, Inc. It is designed for single-stage terminal block installation and supports a nominal AC voltage of 500V with a current rating of 50A. The unit operates at standard frequencies of 50/60Hz and incorporates a capacitance value of 33,000pF to suppress electromagnetic interference.

Power Line Filter Modules Feature Summary

Provides suppression of electromagnetic interference and radio frequency interference in three-phase power systems.
Utilizes a chassis-mount configuration for secure physical integration into electrical enclosures.

Power Line Filter Modules Applications

Industrial machinery power supply conditioning
Three-phase motor drive input filtering
Commercial building electrical distribution systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation before procurement. Confirm that the terminal block interface and chassis mounting dimensions align with the target enclosure design. Ensure the application environment does not exceed the specified 500V AC and 50A continuous current ratings to maintain operational safety and compliance.

Power Line Filter Modules Selection Notes

Select this component when a dedicated single-stage solution is required for three-phase Wye configurations. The 50A rating dictates suitability for moderate load applications. Verify that the 33,000pF capacitance specification meets the system's leakage current constraints and EMI reduction requirements without affecting power quality.

Power Line Filter Modules Part Context

This model belongs to the TAC series of power line filters from Cosel USA, Inc. The series offers various current ratings and capacitance options. The TAC-50-333 specifically addresses the need for standardized filtering in industrial environments where space-efficient chassis mounting and reliable terminal block connections are prioritized over modular plug-in designs.

Power Line Filter Modules Replacement Considerations

Cross-reference part numbers within the Cosel TAC series for alternative current or capacitance values. No direct public substitute part numbers are confirmed for this specific model configuration.
