TAH-30-683

Power Line Filter Modules Overview

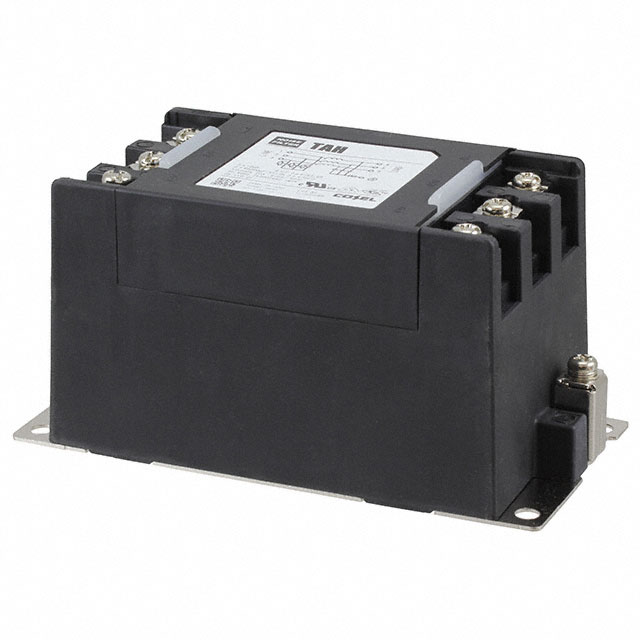

The Cosel TAH-30-683 is a three-phase power line filter designed for industrial applications. It operates at a rated voltage of 500 VAC and supports a current rating of 30 A. The unit features a DIN rail mounting style with screw termination type. Key electrical parameters include a leakage current of 2.5 mA and a capacitance of 68 nF. The device functions within a frequency range of 9 kHz to 1 MHz. It complies with UL, CSA, DIN, VDE, and ENEC standards.

Power Line Filter Modules Feature Summary

• Provides noise filtering for three-phase power lines
• Designed for DIN rail installation
• Utilizes screw terminal connections

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase equipment EMC compliance
• Factory automation systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the exact model suffix, as variations like TAH-30-683-D may exist. Confirm that the application environment matches the specified operating temperature and voltage ratings. Ensure compatibility with the required certification standards such as UL or VDE for the target market. Check for any specific mounting hardware requirements associated with the DIN rail interface.

Power Line Filter Modules Selection Notes

Select this component when a three-phase filter with a 30 A capacity is required. Ensure the system voltage does not exceed 500 VAC. Verify that DIN rail mounting is feasible in the enclosure design. Consider the leakage current specification if sensitive ground references are present. Confirm that the frequency attenuation range meets the specific EMI/EMC requirements of the load.

Power Line Filter Modules Part Context

This part belongs to the Cosel TA series of power line filters. The series includes various current ratings and configurations for three-phase applications. These filters are engineered to reduce electromagnetic interference on AC power lines. The product line emphasizes compact designs suitable for standard industrial enclosures.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other models from the Cosel TA series with matching current and voltage ratings. Cross-reference specifications for leakage current and capacitance values. Verify physical dimensions and mounting hole patterns for mechanical compatibility. Ensure equivalent certification approvals are maintained for regulatory compliance.
