TANGO1/1M/SMAM/S/S/4

$34.54

Description：RF ANT 850MHZ/900MHZ MODULE SMA
Series：TANGO 1
Mfr：Siretta Ltd
Package：Bulk

SKU:b8571b2a3960 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 850MHZ/900MHZ MODULE SMA
Series：TANGO 1
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：6
VSWR：1.5
Return Loss：-
Gain：2dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.669" (17.00mm)
Applications：GPRS, GSM, WLAN
Power - Max：-

Download product information

TANGO1/1M/SMAM/S/S/4

Overview

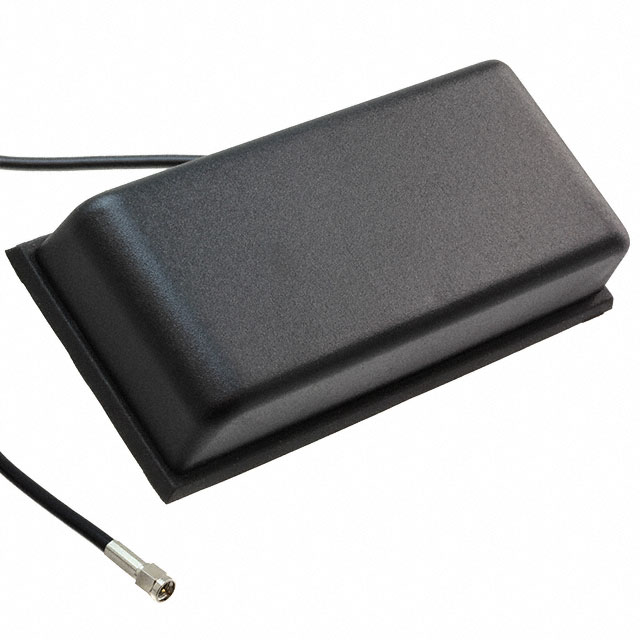

The Siretta TANGO1/1M/SMAM/S/S/4 is a multi-band RF module antenna designed for wireless communication applications. It operates across six frequency bands: 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, and 2.4GHz. The component provides a gain of 2dBi and utilizes an SMA male connector for interface. It features panel mounting and includes a 1-meter cable length.

Feature Summary

Supports multiple cellular and WLAN frequency bands including GPRS, GSM, and WLAN modules
Features a compact module form factor with panel installation capability
Equipped with an integrated SMA male connector and 1-meter lead

Applications

GPRS module integration
GSM module integration
WLAN module integration

Procurement Notes

Verify the specific ordering suffix configuration to ensure compatibility with the required cable length and connector type. Confirm that the SMA male termination matches the host device interface. Check RoHS compliance status against project requirements. Ensure the panel mounting method aligns with the mechanical design constraints of the target enclosure.

Selection Notes

Select this model when a low-profile module antenna is required for devices supporting both legacy cellular standards and Wi-Fi frequencies. The 2dBi gain suits general coverage needs within enclosed spaces. Consider the 1-meter cable length for routing flexibility between the antenna and the mainboard or connector port.

Part Context

This part belongs to the Tango 1 series by Siretta Ltd, which focuses on broadband antennas for mobile and wireless data applications. The series offers various configurations tailored for different mounting styles and frequency combinations, providing solutions for IoT and industrial wireless devices requiring multi-standard connectivity.
