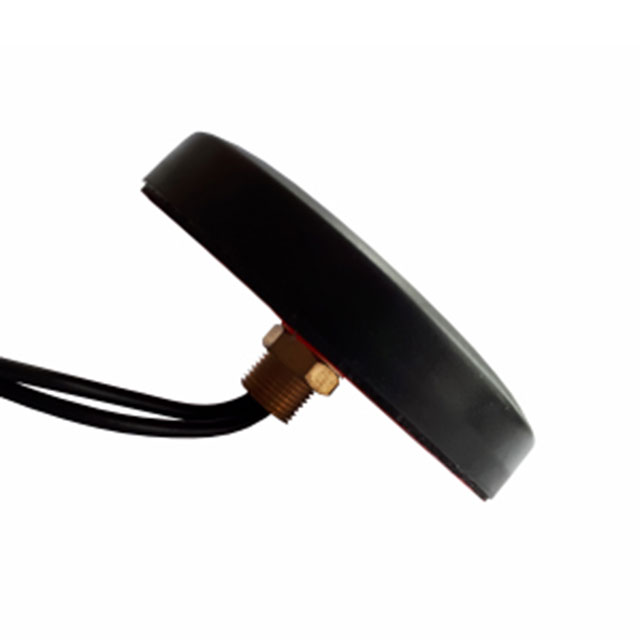

TANGO12/2M/SMAM/SMAM/RP/S/17

$30.72

Description：DUAL BAND MIMO WIFI 2.4/5GHZ THR
Series：TANGO 12
Mfr：Siretta Ltd
Package：Bulk

SKU:017643592358 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DUAL BAND MIMO WIFI 2.4/5GHZ THR
Series：TANGO 12
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.4GHz
Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz
Antenna Type：Module
Number of Bands：2
VSWR：2.6
Return Loss：-
Gain：2dBi, 3dBi
Features：Cable - 2m
Termination：RP-SMA Male (2)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Screw Mount
Height (Max)：0.567" (14.40mm)
Applications：Bluetooth, Wi-Fi, WLAN, Zigbee™
Power - Max：-

Download product information

TANGO12/2M/SMAM/SMAM/RP/S/17

Overview

The Siretta TANGO12/2M/SMAM/SMAM/RP/S/17 is a dual-band MIMO Wi-Fi antenna designed for the 2.4GHz and 5GHz frequency ranges. It features two RP-SMA male connectors with a 2-meter cable length. The unit provides gains of 2dBi at 2.45GHz and 3dBi at 5.4GHz, supporting frequencies from 2.4GHz to 2.5GHz and 4.9GHz to 5.9GHz. It utilizes screw mounting and has a maximum height of 14.40mm.

Feature Summary

Dual-band operation supporting both 2.4GHz and 5GHz wireless standards
Integrated MIMO capability with two distinct connector outputs
Screw mounting mechanism for secure installation

Applications

Bluetooth module connectivity
Wi-Fi network infrastructure
WLAN system deployment
Zigbee module integration

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your RF design requirements. Confirm that the RP-SMA polarity matches your existing equipment interfaces. Check current availability status as lead times may vary based on production schedules. Ensure the physical dimensions fit within your designated enclosure space.

Selection Notes

Select this component when a dual-antenna setup is required for improved signal diversity in wireless environments. The integrated 2-meter cable offers flexibility for remote placement relative to the main board. Consider the screw-mount requirement during mechanical design phases to ensure adequate panel access and structural support for the antenna assembly.

Part Context

This model belongs to the Tango 12 series by Siretta Ltd, specialized for advanced wireless applications. It addresses the need for reliable dual-band performance in compact form factors. The design supports modern IoT and networking protocols requiring simultaneous or switched frequency band operations.
