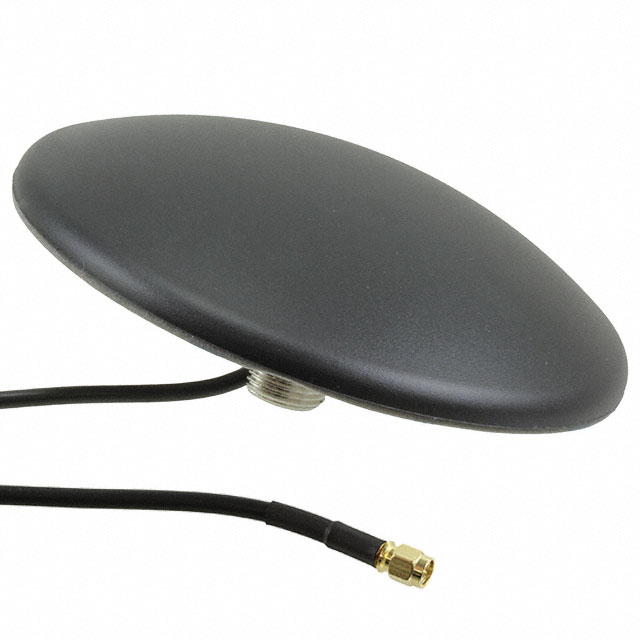

TANGO14/3M/SMAM/S/S/22

$37.64

Description：RF ANT 850/900MHZ DOME SMA MALE
Series：TANGO 14
Mfr：Siretta Ltd
Package：Bulk

SKU:823b1a6541cc Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 850/900MHZ DOME SMA MALE
Series：TANGO 14
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range：-
Antenna Type：Dome
Number of Bands：5
VSWR：2
Return Loss：-
Gain：2.15dB
Features：-
Termination：SMA Male
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.709" (18.00mm)
Applications：GPRS, GSM, UMTS
Power - Max：-

Download product information

TANGO14/3M/SMAM/S/S/22

Overview

The Siretta TANGO14/3M/SMAM/S/S/22 is a multi-band omnidirectional dome antenna designed for cellular and wireless protocols. It operates across frequency ranges of 824MHz to 960MHz and 1.71GHz to 2.17GHz, supporting GSM, GPRS, UMTS, and related standards. The unit features a 2.15dBi gain with an impedance of 50 ohms and a VSWR of 2. It utilizes an SMA male connector and includes a 3-meter cable. The antenna employs panel mounting and offers IP65 ingress protection.

Feature Summary

Omnidirectional radiation pattern suitable for diverse signal directions
Integrated Low Noise Amplifier (LNA) and filter components within the enclosure
IP65 rated weatherproof housing for outdoor or harsh environment deployment

Applications

GSM network connectivity
GPRS data transmission systems
UMTS mobile broadband applications

Procurement Notes

Verify the specific configuration suffixes against the manufacturer's current catalog to ensure compatibility with required cable lengths and connector types. Confirm that the integrated LNA specifications align with system power budgets and noise figure requirements before finalizing procurement orders.

Selection Notes

Select this model when a compact, weather-resistant omnidirectional solution is required for cellular bands. The integrated electronics provide enhanced sensitivity compared to passive alternatives. Ensure the SMA male interface matches the receiving equipment port type and verify space constraints for the dome profile.

Part Context

This component belongs to the Tango series of antennas manufactured by Siretta Ltd. The series focuses on providing reliable RF performance for various wireless communication standards through specialized designs tailored for specific frequency bands and environmental conditions.
