TANGO15/5M/SMAM//SMAM/S/S/22

Overview

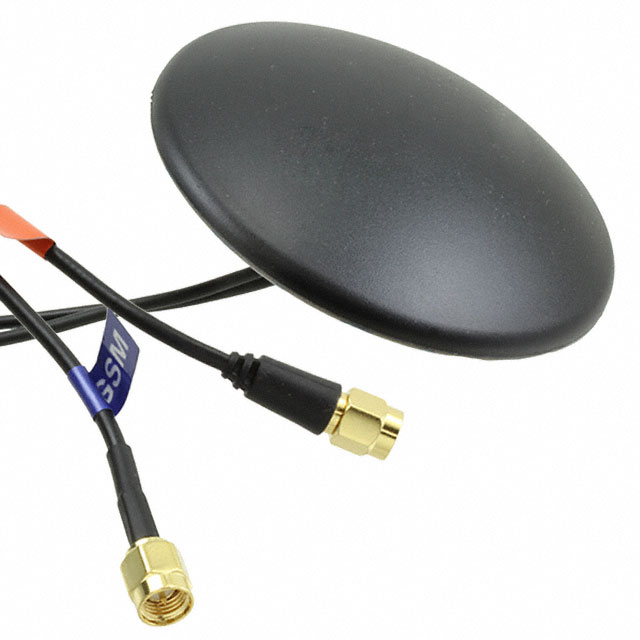

The Siretta TANGO15/5M/SMAM//SMAM/S/S/22 is a multi-band external omnidirectional antenna designed for GSM, GPRS, and GPS applications. It operates within the frequency range of 850 MHz to 1.9 GHz and includes an integrated Low Noise Amplifier (LNA) with filtering capabilities. The unit features a rubber puck physical form factor and utilizes SMA male connectors for both the main antenna output and the LNA power interface. It provides a gain of 3 dBi and has a cable length of 5 meters.

Feature Summary

• Integrated active amplification circuitry with low noise performance
• Omnidirectional radiation pattern for consistent signal coverage
• Multi-band support for cellular voice and data protocols

Applications

• GSM/GPRS mobile communication systems
• GPS navigation receivers
• External vehicle or base station connectivity

Procurement Notes

Verify the specific connector configuration on the target device before ordering. Confirm that the power supply requirements for the integrated LNA match the available voltage and current specifications in the system design. Ensure the SMA male interface compatibility is correct for the intended application environment.

Selection Notes

Select this model when active signal boosting is required for weak reception areas. The integrated LNA distinguishes it from passive variants in the Tango series. Consider the 5-meter cable length for remote mounting scenarios where direct connection is not feasible.

Part Context

This component belongs to the Tango 19 series of antennas manufactured by Siretta Ltd. The series focuses on providing reliable connectivity for wireless devices requiring robust signal acquisition across multiple frequency bands.

Replacement Considerations

TANGO19/5M/SMAM/SMAM/S/S/20
