TANGO17/3M/SMAM/S/S/26

$28.92

Description：RF ANT 850/900MHZ DOME SMA MALE
Series：TANGO 17
Mfr：Siretta Ltd
Package：Bulk

SKU:1c044690ebff Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 850/900MHZ DOME SMA MALE
Series：TANGO 17
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range：-
Antenna Type：Dome
Number of Bands：5
VSWR：2
Return Loss：-
Gain：2dBi
Features：-
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：1.370" (34.80mm)
Applications：GPRS, GSM, UMTS
Power - Max：-

Download product information

TANGO17/3M/SMAM/S/S/26

Overview

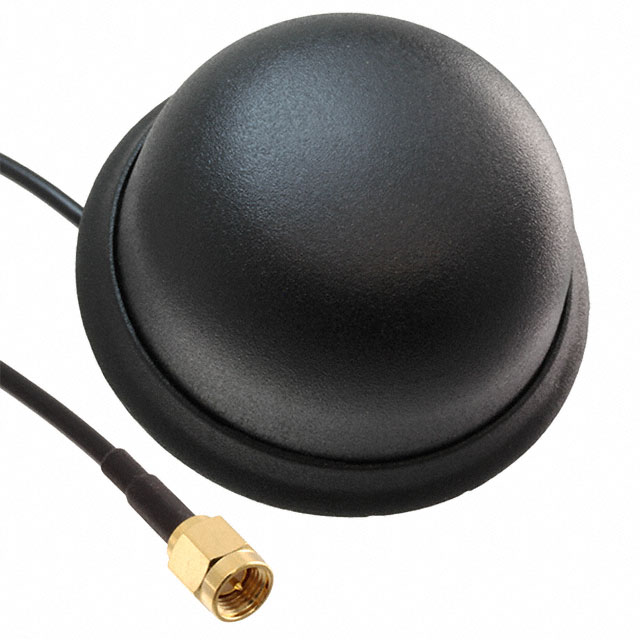

The Siretta TANGO17/3M/SMAM/S/S/26 is a rugged, omnidirectional cellular antenna designed for outdoor M2M and industrial applications. It operates within the 824 MHz to 2.17 GHz frequency range, supporting 2G, 3G, GPRS, LTE, NB-IoT, and CAT-M1 protocols. The unit features a dome-shaped physical form with an integrated PCB internal structure and SMA male connector. It includes a 3-meter RG174 cable and offers 2 dBi gain. The assembly is IP67 rated for environmental protection.

Feature Summary

Ruggedized design suitable for harsh outdoor environments
Omni-directional radiation pattern for consistent coverage
Integrated low-loss coaxial cable assembly
High ingress protection rating against dust and water

Applications

Industrial IoT gateways
Mobile asset tracking systems
Remote telemetry units
Public safety communication devices

Procurement Notes

Verify that the SMA male connector polarity matches the receiving equipment interface. Confirm the 3-meter cable length meets spatial requirements. Ensure the operating environment temperature range aligns with the component specifications. Check local regulatory compliance for the supported cellular bands in the deployment region.

Selection Notes

Select this model when dual-band cellular support across GSM, UMTS, and LTE spectra is required. Choose over standard indoor antennas if IP67 weather resistance is necessary. Consider the fixed 3-meter cable length during layout planning. Opt for this rugged variant in high-vibration or exposed infrastructure settings.

Part Context

This component belongs to the Siretta Tango series of multi-band cellular antennas. It complements other models like the TANGO19 and TANGO22 by focusing specifically on wideband cellular frequencies rather than GPS or WiFi integration. The series targets robust connectivity for machine-to-machine networks.
