TANGO20/3M/SMAM/S/S/26

$26.42

Description：RF ANT 1.575GHZ PUCK SMA MALE
Series：TANGO 20
Mfr：Siretta Ltd
Package：Bulk

SKU:6c34f7a27182 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 1.575GHZ PUCK SMA MALE
Series：TANGO 20
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：-
Antenna Type：Puck
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：28dB
Features：-
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.571" (14.50mm)
Applications：GPS
Power - Max：-

Download product information

TANGO20/3M/SMAM/S/S/26

Overview

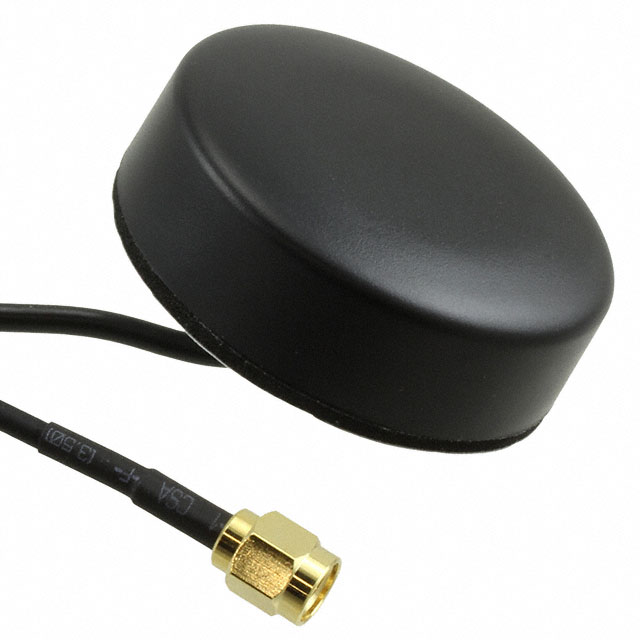

The Siretta TANGO20/3M/SMAM/S/S/26 is a GPS puck antenna designed for external mounting. It operates within the frequency range of 1.57442 GHz to 1.57642 GHz, providing a gain of 5 dBi with a 50-ohm impedance. The unit includes a 3-meter RG174 cable terminated with an SMA male connector. Physical installation utilizes a through-hole or screw-mount configuration.

Feature Summary

Supports dedicated GPS signal reception
Includes integrated low-noise amplifier and bandpass filtering
Features vandal-resistant construction

Applications

GPS navigation systems
Telematics tracking devices
Vehicle fleet management units

Procurement Notes

Verify that the SMA male connector matches the receiving equipment interface. Confirm the 3-meter cable length meets spatial requirements. Ensure the through-hole mounting dimensions align with the chassis design. Validate RoHS compliance against project specifications.

Selection Notes

Select this model when dedicated GPS performance is required. The integrated LNA improves weak signal sensitivity. The ruggedized housing suits outdoor or industrial environments. Verify the specific frequency range covers the target GPS L1 band.

Part Context

This component belongs to the Tango series of antennas manufactured by Siretta Ltd. The series provides various configurations for wireless communication applications. This specific part focuses on global positioning system connectivity rather than cellular or Wi-Fi bands.

Replacement Considerations

Direct substitutes include other Siretta Tango series GPS antennas with matching SMA connectors and cable lengths. Cross-reference mechanical mounting hole patterns before selecting alternatives.
