TANGO20A/3M/SMAM/S/S/26

$24.97

Description：RF ANT 1.592GHZ PUCK SMA MALE
Series：TANGO 20A
Mfr：Siretta Ltd
Package：Bulk

SKU:35ee03df0f1c Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 1.592GHZ PUCK SMA MALE
Series：TANGO 20A
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.592GHz
Frequency Range：-
Antenna Type：Puck
Number of Bands：1
VSWR：2
Return Loss：-
Gain：28dB
Features：-
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.571" (14.50mm)
Applications：GLONASS, GPS
Power - Max：-

Download product information

TANGO20A/3M/SMAM/S/S/26

Overview

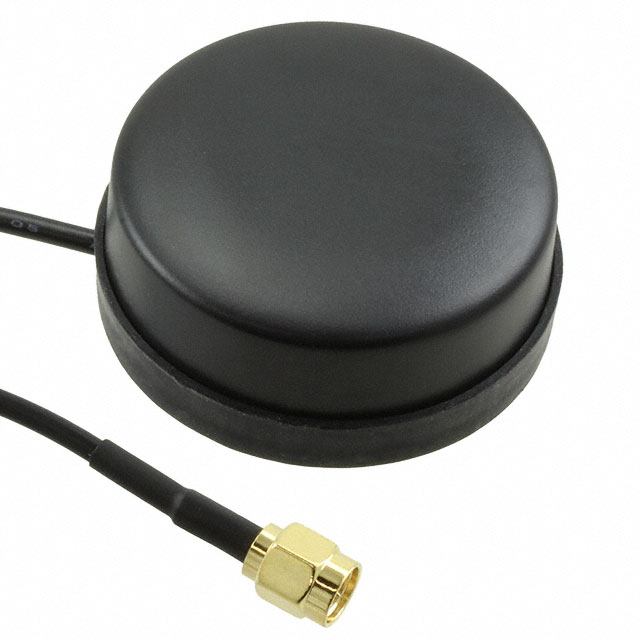

The Siretta TANGO20A/3M/SMAM/S/S/26 is a GPS and Glonass puck antenna designed for outdoor applications. It operates within the frequency range of 1.589 GHz to 1.595 GHz. The unit features a screw mount installation type and includes a 3-meter RG174 cable terminated with an SMA male connector. The antenna provides a gain of 28 dBi.

Feature Summary

Supports both GPS and Glonass satellite navigation systems
High-gain design optimized for outdoor signal reception
Includes integrated 3-meter RG174 cable with SMA male connector

Applications

GPS tracking devices
Glonass positioning systems
Outdoor navigation equipment

Procurement Notes

Verify that the SMA male connector matches the receiving device interface. Confirm the 3-meter cable length meets spatial requirements. Ensure the screw mount hardware is compatible with the installation surface. Check RoHS compliance status if required by project specifications.

Selection Notes

Select this model when high gain is required for outdoor GPS or Glonass applications. The integrated cable simplifies installation compared to discrete components. Verify that the operating frequency aligns with the target satellite system bands.

Part Context

This component belongs to the Tango series of antennas manufactured by Siretta Ltd. The series includes various configurations for different wireless protocols and mounting styles, utilizing standardized connectors for integration.
