TANGO22/3M/SMAM/SMAM/SMAM/26

$51.20

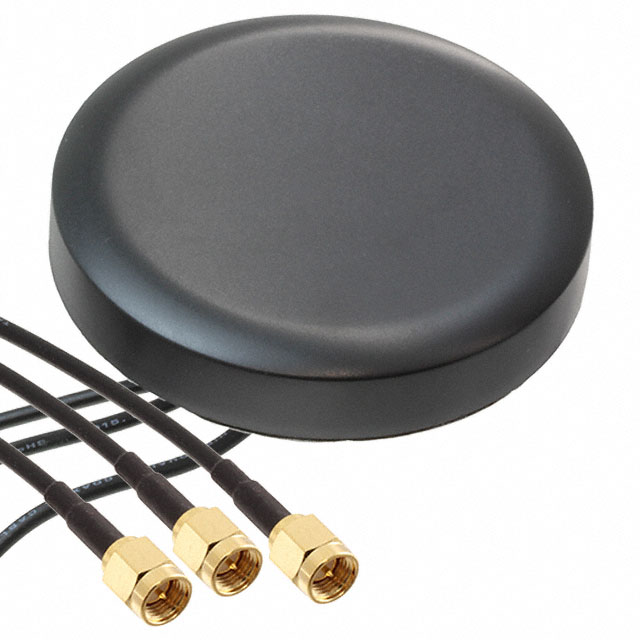

Description：RF ANT 850/900MHZ PUCK SMA MALE
Series：TANGO 22
Mfr：Siretta Ltd
Package：Bulk

SKU:610fe9aec814 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 850/900MHZ PUCK SMA MALE
Series：TANGO 22
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular, Navigation, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
Frequency Range：-
Antenna Type：Puck
Number of Bands：7
VSWR：1.5, 2
Return Loss：-
Gain：28dB
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.591" (15.00mm)
Applications：GPRS, GPS, GSM, WLAN
Power - Max：-

Download product information

TANGO22/3M/SMAM/SMAM/SMAM/26

Overview

The Siretta TANGO22/3M/SMAM/SMAM/SMAM/26 is a multi-band RF antenna designed for cellular, navigation, and WiFi applications. It operates across frequency ranges of 824MHz to 960MHz, 1.71GHz to 2.17GHz, and 2.3GHz to 2.7GHz. The unit features a 28dBi gain with a VSWR of 1.5 to 2 and an echo loss of -7.4dB. It utilizes SMA male connectors and includes a 3m cable length. The antenna supports protocols including GPRS, GPS, GSM, and WLAN.

Feature Summary

Integrates Low Noise Amplifier (LNA) and filter components within the module design
Supports simultaneous operation across cellular, navigation, and wireless LAN standards
Utilizes panel mounting configuration for secure installation

Applications

GPRS network connectivity
GPS positioning systems
GSM voice and data transmission
WLAN communication links

Procurement Notes

Verify the specific connector polarity and cable length requirements against the system interface specifications before ordering. Confirm that the integrated LNA and filter components align with the signal processing architecture of the host device. Ensure the panel mounting dimensions accommodate the physical constraints of the intended enclosure or chassis layout.

Selection Notes

This model provides high gain suitable for demanding RF environments requiring robust signal reception. The inclusion of active amplification and filtering distinguishes it from passive alternatives. Evaluate the power budget to ensure compatibility with the LNA requirements. Consider the SMA male termination when selecting mating cables or adapters for the final assembly integration.

Part Context

The TANGO22 belongs to the Tango series of advanced wireless antennas manufactured by Siretta Ltd. This series focuses on broadband solutions capable of handling multiple distinct frequency bands simultaneously. The component represents a specialized module approach rather than a simple radiating element, incorporating internal electronics to enhance performance metrics for complex wireless deployments.
