Product Detailed Parameters
- Description：GPS/GLONASS PUCK 28DBI GAIN ANTE
- Series：TANGO 22A
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：829MHz, 1.58GHz, 2.205GHz, 2.44GHz
- Frequency Range：698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.4835GHz
- Antenna Type：Puck
- Number of Bands：4
- VSWR：1.5, 2, 3
- Return Loss：-
- Gain：2dBi, 5dBic, 3dBi
- Features：Cable - 3m
- Termination：SMA Male (3)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：0.630" (16.00mm)
- Applications：Bluetooth, Galileo, GLONASS, GPS, GSM, ISM, LTE, UMTS, Wi-Fi, WLAN, Zigbee™
- Power - Max：-
Download product information
Overview

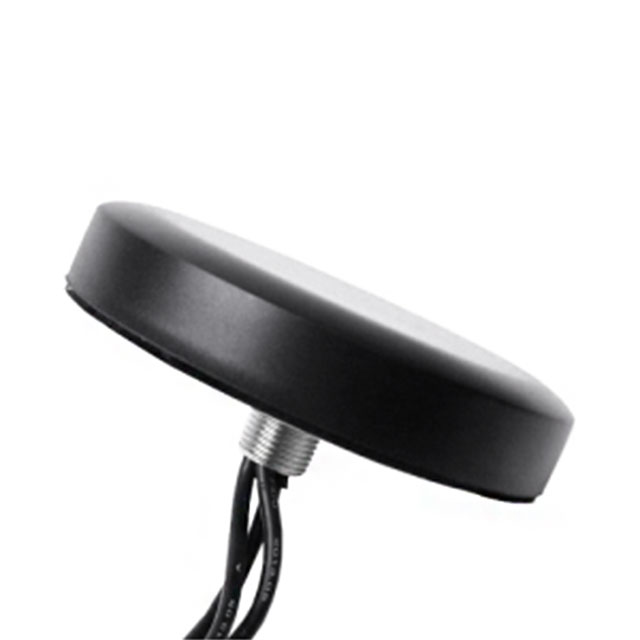

The Siretta TANGO22A/3M/SMAM/SMAM/SMAM/S/S/26 is a multi-band puck antenna designed for global positioning and cellular applications. It operates across the 698 MHz to 2.7 GHz frequency range, supporting protocols including GSM, GPRS, GPS, GLONASS, Galileo, and Bluetooth. The unit features a 28 dBi gain specification and utilizes three SMA male connectors with a 3-meter cable length. Designed for external installation via direct or permanent mounting methods, it provides omnidirectional coverage for robust RF connectivity in mobile and fixed environments.
Feature Summary
- Supports multiple satellite navigation systems including GPS, GLONASS, and Galileo alongside cellular standards
- Features a compact puck physical form factor suitable for constrained installation spaces
- Equipped with three distinct SMA male connectors for simultaneous multi-protocol operation
Applications
- Global Positioning System (GPS) tracking devices
- GSM and GPRS telemetry modules
- Bluetooth-enabled IoT gateways
- Multi-protocol vehicle tracking units
Procurement Notes
Verify that the required interface matches the SMA male connector type specified for this model. Confirm that the 3-meter cable length meets the spatial requirements of the target installation site. Ensure the receiving equipment supports the specific multi-band frequencies ranging from 698 MHz to 2.7 GHz. Check compatibility with the intended mounting method, as the design requires direct or permanent attachment rather than adhesive solutions.
Selection Notes
Select this component when simultaneous reception of cellular and satellite signals is required within a single compact housing. The high gain specification makes it suitable for applications where signal strength may be compromised by environmental obstructions. Consider the three-connector layout if separate cabling paths are necessary for different radio modules. Evaluate the external puck form factor against available surface area for permanent mounting.
Part Context
This part belongs to the Tango series of antennas manufactured by Siretta Ltd. The Tango line focuses on multi-band performance for wireless communication and navigation. This specific model integrates support for both terrestrial cellular networks and global satellite navigation constellations into one unified hardware solution.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify exact pinout and mechanical dimensions before considering alternative multi-band puck antennas.
