TANGO23/1M/SMAM/S/RP/19

$25.93

Description：RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA
Series：TANGO 23
Mfr：Siretta Ltd
Package：Bulk

SKU:c8ee2090c0f9 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA
Series：TANGO 23
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：2.4GHz, 5.5GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz
Antenna Type：Puck
Number of Bands：2
VSWR：1.7
Return Loss：-
Gain：5dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.906" (23.00mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Download product information

TANGO23/1M/SMAM/S/RP/19

Overview

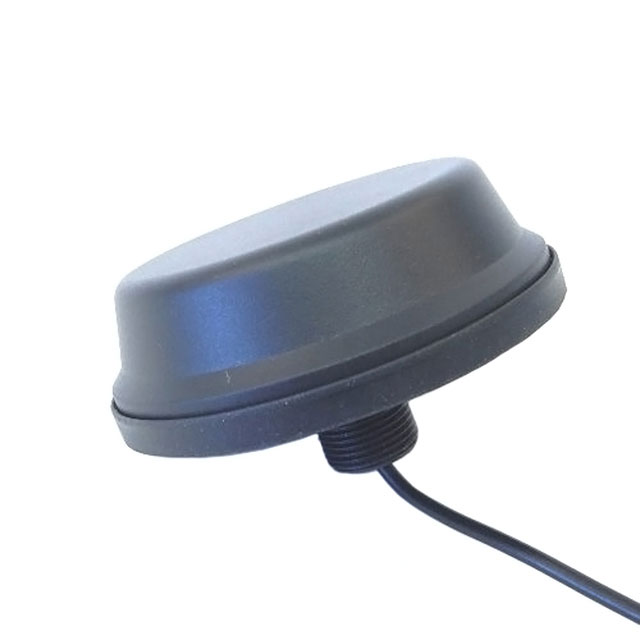

The Siretta TANGO23/1M/SMAM/S/RP/19 is a dual-band puck antenna designed for Bluetooth, WLAN, and Zigbee applications. It operates across the 2.4 GHz and 5.1–5.9 GHz frequency ranges with a gain of 5 dBi. The unit features an RP-SMA male connector and includes a 1-meter low-loss CLF100 cable. Constructed with a tough, vandal-resistant design, it supports through-hole or panel mounting and carries an IP67 rating for environmental protection.

Feature Summary

Dual-band operation supporting 2.4 GHz and 5.1–5.9 GHz frequencies
IP67 rated rugged construction with vandal-resistant design
Integrated 1-meter low-loss CLF100 cable with RP-SMA male connector

Applications

Bluetooth connectivity systems
WLAN network infrastructure
Zigbee wireless sensor networks

Procurement Notes

Verify that the RP-SMA male connector matches the receiving equipment interface. Confirm the 1-meter cable length meets spatial requirements. Ensure the mounting surface accommodates the puck form factor and allows for secure installation to maintain the IP67 seal integrity during operation.

Selection Notes

Select this model when both 2.4 GHz and 5 GHz bands are required in a single compact unit. The IP67 rating makes it suitable for harsh environments where dust and water resistance are critical. The integrated cable simplifies installation compared to discrete antenna solutions requiring separate cabling.

Part Context

This component belongs to the Tango series of antennas from Siretta Ltd. It is specifically engineered for short-range wireless protocols including Bluetooth, Wi-Fi, and Zigbee. The design prioritizes durability and ease of integration into industrial or commercial IoT devices requiring reliable dual-band performance.
