TANGO28/0.1M/IPEX/S/S/35

Antennas RF Overview

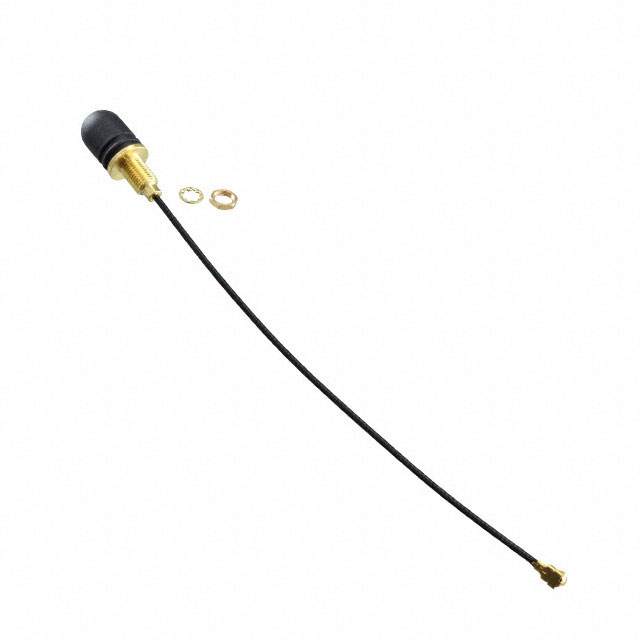

The Siretta TANGO28/0.1M/IPEX/S/S/35 is an external panel-mount antenna designed for the 2.4 GHz frequency band, supporting WiFi and Bluetooth Low Energy (BLE) protocols. It features a compact stubby physical form factor with a gain of 0 dBi. The unit includes a 100 mm cable terminating in a female IPEX/U.FL connector.

Antennas RF Feature Summary

• Compact stubby design suitable for space-constrained applications
• Supports dual 2.4 GHz WiFi and BLE protocols
• Panel mount installation type

Antennas RF Applications

• Small IoT projects within good signal zones
• Vehicular wireless communication systems
• Embedded WiFi and Bluetooth modules

Antennas RF Procurement Notes

Verify that the target device utilizes a female IPEX or U.FL connector to ensure mechanical compatibility. Confirm that the application environment supports panel mounting, as this model lacks adhesive or screw-fixing hardware. Ensure the operational frequency aligns with the 2.4 GHz band requirements for both WiFi and BLE signals.

Antennas RF Selection Notes

Select this component when a low-profile, non-directional antenna is required for 2.4 GHz wireless standards. It is appropriate for devices where internal antennas are impractical due to size constraints but external whip antennas are too bulky. The short cable length minimizes signal loss while maintaining flexibility for internal routing.

Antennas RF Part Context

This part belongs to the Tango series, which specializes in through-hole and panel-mount antennas for cabinet installations. Unlike the ECHO series focused on GPS or ALPHA series for multi-band cellular use, the Tango 28 targets specific 2.4 GHz ISM band applications requiring minimal footprint.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 2.4 GHz frequency range, 0 dBi gain, female IPEX connector, and 100 mm cable length specifications.
