TANGO29/1M/SMAM/RP/S/35

Antennas RF Overview

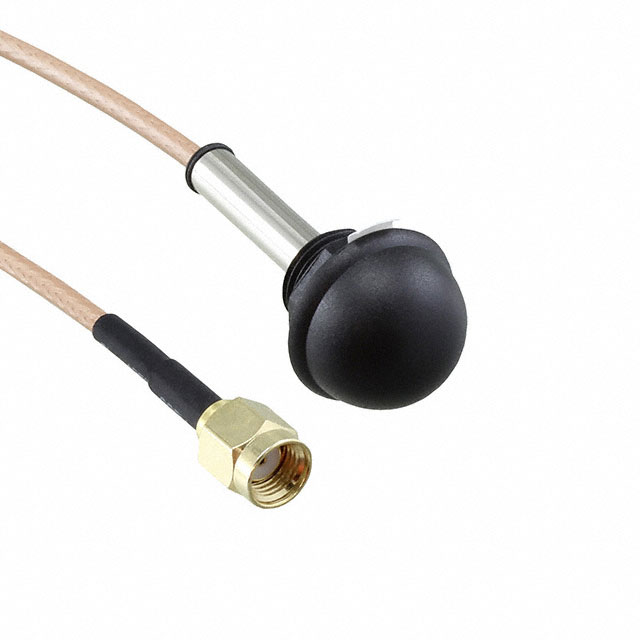

The TANGO29/1M/SMAM/RP/S/35 is a panel-mount RF antenna from the Tango series, designed for wireless LAN and Bluetooth applications. It operates at a center frequency of 2.45GHz within the 2.4GHz to 2.5GHz range. The unit features an RP-SMA male connector and includes a 1-meter cable. Key electrical specifications include a VSWR of 2, a return loss of -7.4dB, and a maximum power rating of 1W. The physical dimensions are characterized by a maximum height of 0.394 inches (10.00mm).

Antennas RF Feature Summary

• Weatherproof design with minimal outward presence suitable for panel mounting.
• Integrated 1-meter cable terminating in an RP-SMA male connector.
• Optimized performance for Wireless LAN, Bluetooth, and Zigbee protocols.

Antennas RF Applications

• Wireless LAN systems
• Bluetooth connectivity modules
• Zigbee network devices

Antennas RF Procurement Notes

Verify the specific connector polarity and interface type against system requirements before procurement. Confirm that the 1-meter cable length and RP-SMA male termination align with the intended integration point. Ensure environmental conditions match the weatherproof specification. Cross-reference the operating frequency range with the target application standards to guarantee compatibility.

Antennas RF Selection Notes

Select this component when a low-profile, weather-resistant antenna is required for indoor or outdoor panel installations. The integrated cable simplifies assembly compared to direct-mount variants. Consider the RP-SMA interface if it matches the host device's port. Evaluate the 1-meter lead length as sufficient for routing within the enclosure or chassis layout constraints.

Antennas RF Part Context

This model belongs to the Tango series of antennas manufactured by Siretta Ltd. The series focuses on compact, robust solutions for various wireless communication standards. The Tango29 variant specifically targets the 2.4GHz ISM band, providing a specialized option for multi-protocol IoT and networking hardware requiring reliable signal transmission.

Antennas RF Replacement Considerations

Direct substitutes within the Tango series may include models with different cable lengths or connector types, such as those with standard SMA connectors. Verify that any replacement maintains the same RP-SMA female mating requirement and identical physical footprint to ensure mechanical fit without modification.

Antennas RF FAQ

What is the maximum height of the TANGO29 antenna?

The maximum height of the antenna unit is 0.394 inches, which corresponds to 10.00 millimeters.

Does the TANGO29 support multiple frequency bands?

No, this specific model is designed for a single frequency group covering the 2.4GHz to 2.5GHz range.
