TANGO30/0.1M/IPEX/S/S/35

Overview

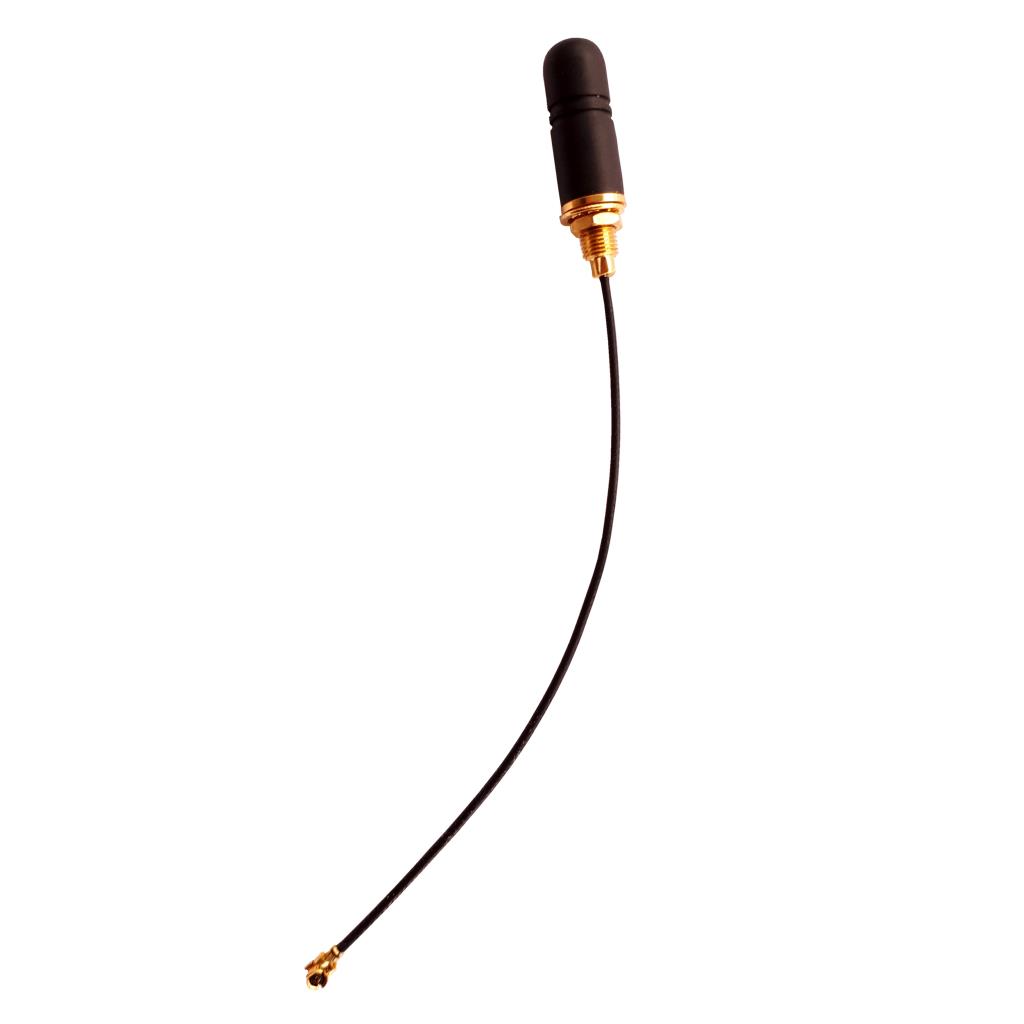

The Siretta TANGO30/0.1M/IPEX/S/S/35 is a straight whip RF antenna designed for Bluetooth and Wi-Fi applications. It operates within the 2.4GHz to 2.5GHz frequency range with a center frequency of 2.45GHz. The component features a 0dBi gain rating and utilizes a U.FL (UMCC) or I-PEX MHF1 connector interface. It has a maximum power handling capacity of 1W and a VSWR of 2. The physical dimensions are specified as 19mm diameter by 10.5mm height, with a cable length of 0.1m. The antenna is intended for panel mounting installation.

Feature Summary

• Supports Bluetooth and Wi-Fi protocols in the 2.4GHz band
• Compact straight whip design suitable for space-constrained panel installations
• Integrated short cable with U.FL connector for direct board attachment

Applications

• Bluetooth Low Energy (BLE) device connectivity
• Wi-Fi enabled consumer electronics
• IoT sensor modules requiring 2.4GHz wireless communication

Procurement Notes

Verify the specific connector polarity and mating compatibility with the host PCB footprint before ordering. Confirm that the 0.1m cable length meets the mechanical clearance requirements of the final assembly. Ensure the panel mounting method aligns with the antenna's structural design to maintain optimal radiation patterns. Cross-reference the datasheet for any updates on RoHS compliance status.

Selection Notes

Select this model when a low-profile, omnidirectional solution is required for 2.4GHz wireless standards. The 0dBi gain indicates a baseline performance suitable for short-range communications. Consider the U.FL connector type if the system design utilizes micro-coaxial interfaces. Evaluate the 1W power limit against the transmitter output to ensure safe operation without damage to the antenna element.

Part Context

This component belongs to the Siretta Tango series, which focuses on compact antennas for wireless connectivity. The Tango line typically offers various lengths and connector options tailored for embedded applications. This specific part number denotes the 0.1m cable variant with IPEX-compatible connectors, distinguishing it from longer cable versions or different connector types within the same product family.

Replacement Considerations

Direct substitutes may include other Tango series variants with different cable lengths or connector types, provided the electrical specifications match. Verify that any replacement maintains the 2.4GHz-2.5GHz frequency range and compatible connector interface. Consult official Siretta documentation for approved cross-references.
