Product Detailed Parameters
- Description：2.4-2.5 & 5.1-5.9MHZ WIFI MIMO T
- Series：Tango 36
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.45GHz, 5.5375GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.975GHz
- Antenna Type：Dome
- Number of Bands：2
- VSWR：1.7
- Return Loss：-
- Gain：2dBi, 6dBi, 3dBi, 8dBi
- Features：Cable - 100mm
- Termination：RP-SMA Male (3)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：1.594" (40.50mm)
- Applications：Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™
- Power - Max：10 W
Download product information
Overview

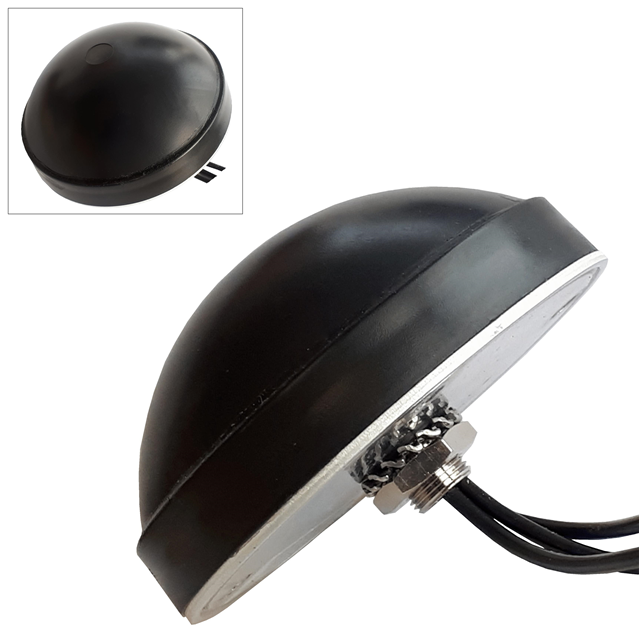

The Siretta TANGO36/1.5M/SMAM/RP/S/29 is a three-antenna MIMO WiFi antenna designed for dual-band operation across 2.4 GHz and 5 GHz frequency ranges. It features an omnidirectional radiation pattern with vertical polarization, providing a gain of 8 dBi. The unit utilizes RP-SMA connectors and includes 1.5-meter lead lengths. Constructed as a ceiling-mounted puck-style dome, it offers weather-resistant performance suitable for indoor or outdoor deployment.
Feature Summary
- Supports 3x3 MIMO configurations for enhanced WiFi throughput
- Dual-band coverage for 2.4 GHz and 5 GHz networks
- Ceiling-mounted puck design with weather-resistant housing
Applications
- Indoor WiFi network infrastructure
- Outdoor wireless connectivity solutions
- Enterprise WLAN deployments
Procurement Notes
Verify the specific connector polarity (RP-SMA) matches existing cabling infrastructure. Confirm that the 1.5-meter cable length meets spatial requirements. Ensure the ceiling-mount puck form factor aligns with installation constraints. Check RoHS compliance status if required by project specifications.
Selection Notes
Select this model when high-gain omnidirectional coverage is required for dual-band WiFi systems. The 8 dBi gain supports extended range applications. The integrated 1.5-meter cables simplify routing. Consider the puck form factor for aesthetic ceiling integration compared to whip antennas.
Part Context
This component belongs to the Siretta Tango series, which specializes in multi-antenna MIMO solutions. The Tango 36 variant specifically targets WiFi applications requiring robust dual-band performance. It complements other Tango models by offering a dedicated ceiling-mount option for fixed installations.
Replacement Considerations
No direct public substitute part numbers are confirmed. Alternative selection requires matching MIMO configuration, dual-band support, and connector type.
