TANGO40/X/NTYPEF/S/S/32

Overview

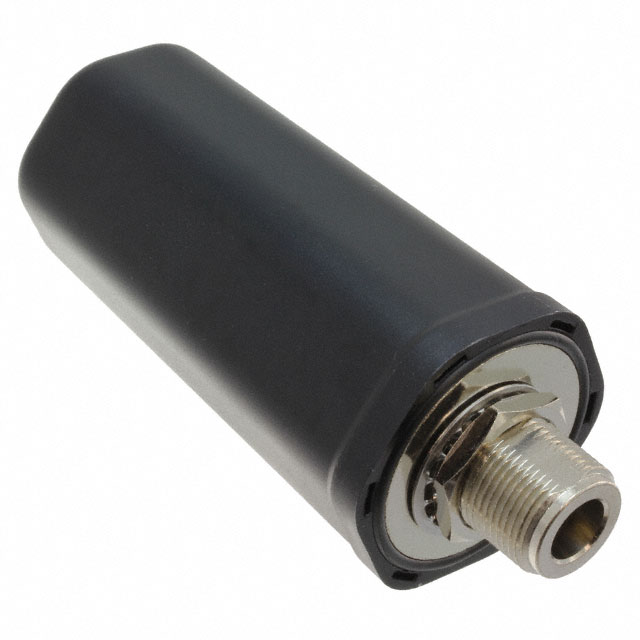

The Siretta TANGO40/X/NTYPEF/S/S/32 is a multi-band RF antenna designed for wireless communication applications. It operates across three frequency bands: 698MHz to 960MHz, 1.71GHz to 2.17GHz, and 2.3GHz to 2.7GHz. The antenna features a whip-style, straight physical form factor with N-type female connectors for panel mounting. It provides gain levels of 1dBi, 3dBi, and 5dBi across its operational spectrum. Key electrical specifications include a maximum VSWR of 3 and a return loss of -7.4dB. The unit supports a maximum power input of 1W and is constructed to be RoHS compliant.

Feature Summary

• Supports multiple frequency bands including GSM/GPRS, 3G, 4G, and WiFi standards
• Features a compact stubby whip design suitable for space-constrained installations
• Utilizes N-type female connectors for secure panel mounting interfaces
• Maintains IP65 ingress protection rating for environmental durability

Applications

• WLAN connectivity systems
• 2G (GSM/GPRS) network infrastructure
• 3G mobile communication devices
• 4G LTE equipment integration

Procurement Notes

Verify the specific connector polarity and cable length requirements against system interface specifications before ordering. Confirm that the panel mounting hole dimensions align with the antenna's mechanical footprint. Ensure the operating environment temperature range falls within the component's rated limits. Check for any regional regulatory compliance requirements relevant to the target deployment frequencies. Validate that the mating connector hardware matches the N-type female specification provided in the datasheet.

Selection Notes

Choose this model when a low-profile, multi-band solution is required for indoor or outdoor panel installation. Consider the N-type interface if higher power handling or robustness is needed compared to SMA alternatives. Evaluate the 1dBi to 5dBi gain variation to match signal coverage needs. Assess the IP65 rating necessity for exposed environments. Compare against other Tango series models if different connector types or form factors are preferred.

Part Context

This component belongs to the Siretta Tango 40 series, which focuses on small-footprint antennas for various wireless protocols. The series includes variants with different connectors and mounting styles. The TANGO40 line is engineered for reliable performance in cellular and WLAN applications. It complements other Siretta products like the Alpha and Tango 28 series by offering specialized multi-band capabilities in a durable package.

Replacement Considerations

Direct substitutes may include other Siretta Tango 40 variants with different connector types such as SMA. Cross-reference with similar multi-band whip antennas from manufacturers like Laird or Antenova. Verify that replacement parts maintain the same N-type female interface and panel mounting constraints. Ensure equivalent frequency coverage and gain characteristics are met by alternative components.
