Product Detailed Parameters
- Description：RF ANT WHIP STR IPEX PAN MT
- Series：TANGO 45
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：Wide Band
- Frequency (Center/Band)：-
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：3
- VSWR：3.5
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：2.362" (60.00mm)
- Applications：-
- Power - Max：1 W
Download product information
Overview

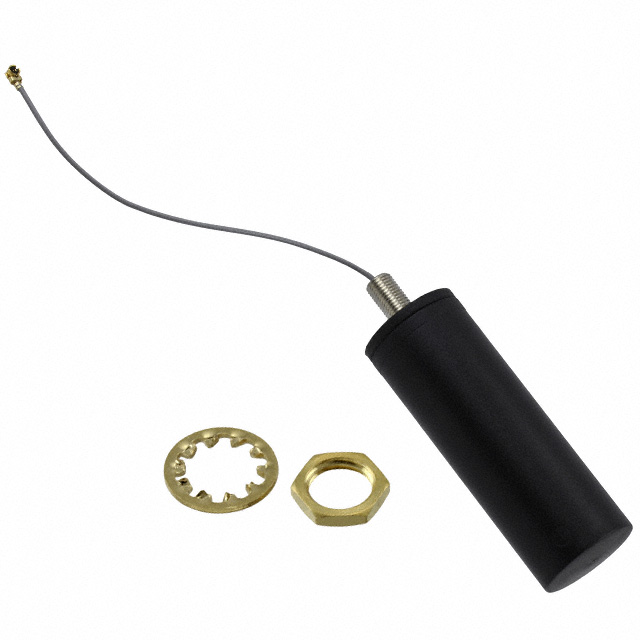

The Siretta TANGO45/0.1M/IPEX/S/S/29 is a broadband whip antenna designed for panel mounting applications. It operates across three distinct frequency ranges: 690MHz to 960MHz, 1.71GHz to 2.17GHz, and 2.5GHz to 2.7GHz. The component features a maximum gain of 2dBi and supports a maximum power input of 1W. It utilizes a U.FL (UMCC) or I-PEX MHF1 connector interface with an integrated cable length of 1 meter. The physical dimensions include a maximum height of 60.00mm (2.362 inches). Electrical performance specifications include a Voltage Standing Wave Ratio (VSWR) of 3.5 and a return loss of -7.4dB.
Feature Summary
- Broadband multi-band coverage supporting cellular, Wi-Fi, and WLAN protocols
- Compact vertical whip design suitable for constrained panel installations
- Integrated short cable termination for simplified system integration
Applications
- 2G, 3G, and 4G mobile communication devices
- GSM, GPRS, and LTE network equipment
- Wi-Fi and Wireless Local Area Network (WLAN) systems
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required connector types and cable lengths. Confirm that the broadband frequency ranges align precisely with the target application's operational spectrum. Check RoHS compliance status and export classification codes prior to final procurement authorization.
Selection Notes
Select this model when a single antenna solution is required to cover multiple disparate frequency bands without external combiners. Evaluate the 2dBi gain level against link budget requirements for the intended deployment environment. Ensure the panel mount form factor fits within the available chassis space constraints.
Part Context
This component belongs to the Tango series of antennas manufactured by Siretta Ltd. The series focuses on providing versatile wireless connectivity solutions for various industrial and consumer electronic applications requiring reliable RF transmission and reception capabilities.
Replacement Considerations
Consult official Siretta documentation for confirmed substitute part numbers. Verify that any alternative maintains identical frequency ranges, connector interfaces, and mechanical dimensions.
