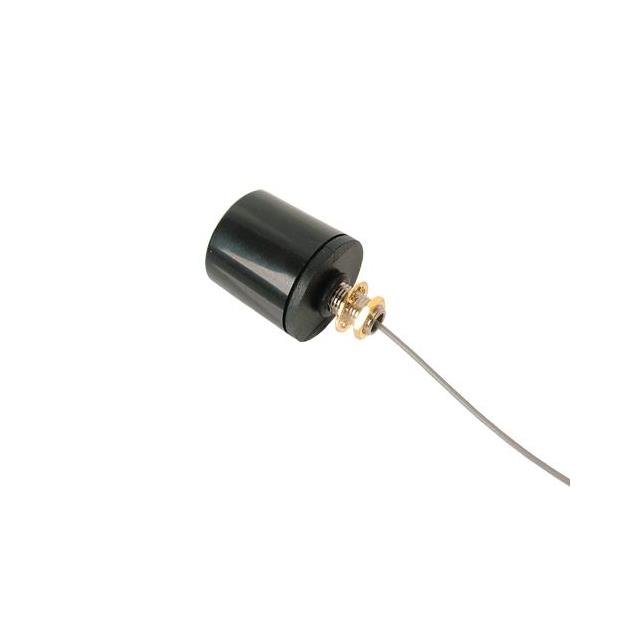

TANGO46/0.1M/IPEX/S/S/29

$11.60

Description：RF ANT DOME IPEX PAN MT
Series：-
Mfr：Siretta Ltd
Package：Bulk

SKU:a9ccbb514c83 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT DOME IPEX PAN MT
Series：-
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：-
Frequency Range：-
Antenna Type：Dome
Number of Bands：2
VSWR：2.5
Return Loss：-
Gain：2dBi
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.866" (22.00mm)
Applications：-
Power - Max：1 W

Download product information

TANGO46/0.1M/IPEX/S/S/29

Overview

The TANGO46/0.1M/IPEX/S/S/29 is a miniature bead omnidirectional antenna designed for wireless communication applications. It operates within the frequency range of 1.71 GHz to 2.17 GHz and 2.5 GHz to 2.7 GHz, supporting 3G and 4G standards. The unit features a 0.1-meter cable length constructed with 1.13 mm coaxial material. It provides a gain of 4 dBi and utilizes an IPEX connector interface. The antenna is engineered for panel mounting installation.

Feature Summary

Compact bead form factor suitable for space-constrained designs
Omnidirectional radiation pattern for consistent signal coverage
Integrated short-length coaxial cable assembly

Applications

3G mobile communication devices
4G LTE embedded modules
Wireless IoT gateways

Procurement Notes

Verify the specific connector polarity and mating compatibility with the target device's RF port before integration. Confirm that the operating frequency bands align precisely with regional regulatory requirements and network specifications. Ensure the panel mounting method accommodates the physical dimensions and mechanical stress limits defined in the official datasheet to maintain structural integrity during operation.

Selection Notes

Select this component when a low-profile omnidirectional solution is required for cellular data transmission. The integrated cable simplifies routing compared to discrete antenna elements. Consider the 4 dBi gain as a baseline performance metric for standard indoor or vehicle-mounted deployments where high-gain directional antennas are impractical due to size constraints.

Part Context

This model belongs to the Siretta Tango series, which specializes in compact antennas for mobile and industrial wireless applications. The Tango line typically offers various cable lengths and connector options to facilitate easy integration into portable electronics and embedded systems requiring reliable cellular connectivity.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Alternative models within the Tango series may offer different cable lengths or connector types but require verification of electrical performance equivalence.
