Product Detailed Parameters
- Description：5-IN-1 MIMO IP68 PUCK ANTENNA X1
- Series：TANGO 57
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Cellular, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：3.3085GHz
- Frequency Range：617MHz ~ 6GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：6.68dBi
- Features：Cable - 1m
- Termination：RP-SMA Male, SMA Male
- Ingress Protection：IP68
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount, Through Hole
- Height (Max)：1.929" (49.00mm)
- Applications：3G, 4G, 5G, GNSS, GPS, LTE, Wi-Fi
- Power - Max：25 W
Download product information
Overview

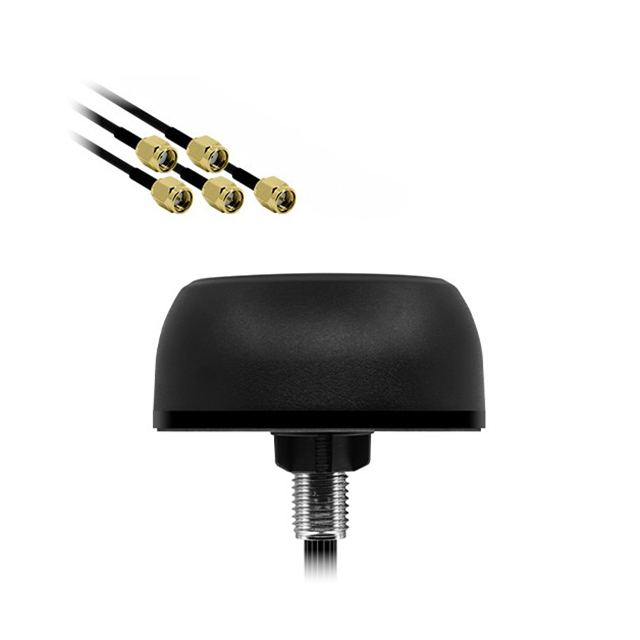

The Siretta TANGO57/MIMO/221/1M/SMAM/RP-SMAM is a multi-band MIMO antenna system designed for high-performance wireless connectivity. It integrates five distinct antennas within a single IP68-rated dome housing, supporting GSM, GPRS, ZigBee, NB-IoT, and 5G frequencies. The unit features SMA male connectors for cellular links and RP-SMA connectors for Wi-Fi applications. It includes a 1-meter cable length and provides a gain of 4.73 dBi in the 5.925 to 7.125 GHz range.
Feature Summary
- Integrates five distinct antennas into a single compact unit
- Provides IP68 environmental protection rating
- Supports multiple wireless protocols including 5G and Wi-Fi
Applications
- Industrial IoT gateways requiring multi-protocol support
- Smart city infrastructure nodes
- Public safety communication systems
Procurement Notes
Verify that the specific connector mix matches the host device interface requirements. Confirm that the IP68 sealing remains intact during installation. Ensure the mounting surface is compatible with the dome shape for optimal signal propagation. Check local regulatory compliance for all supported frequency bands before deployment.
Selection Notes
Select this model when space constraints require consolidating multiple antenna functions. It is suitable for environments demanding robust weather resistance. Consider the integrated nature if cabling complexity needs reduction. Evaluate the need for simultaneous multi-protocol operation versus single-purpose alternatives.
Part Context
This component belongs to the Tango series of antennas from Siretta Ltd. The series focuses on providing reliable RF solutions for industrial and commercial applications. The MIMO designation indicates support for Multiple Input Multiple Output technology to enhance data throughput.
Replacement Considerations
Direct substitutes include other Tango series models such as TANGO57/MIMO/421/1M/SMAM/RP-SMAM. Verify connector types and frequency coverage match the original design requirements before swapping.
