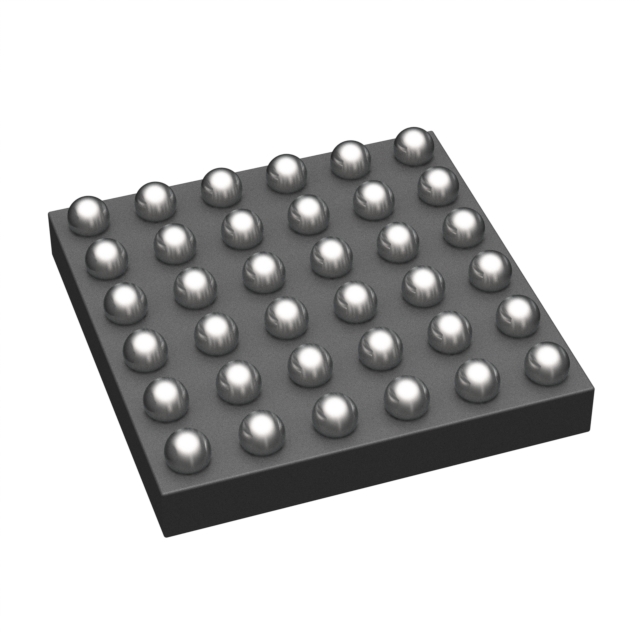

TAS2564YBGT

$2.70

Description：10W CLASS-D SMART AMP W/ DSP
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5d68791d422a Category: Audio Amplifiers Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10W CLASS-D SMART AMP W/ DSP
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Class D
Output Type：1-Channel (Mono)
Max Output Power x Channels @ Load：7W x 1 @ 8Ohm
Voltage - Supply：1.65V ~ 1.95V
Features：-
Mounting Type：Surface Mount
Supplier Device Package：36-DSBGA (2.63x2.46)
Package / Case：36-XFBGA, DSBGA
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

TAS2564YBGT

Overview

The TAS2564YBGT is a Class-D audio amplifier manufactured by Texas Instruments, housed in a DSBGA-36 package. It delivers 7 W of output power into an 8 Ohm load with a THD+N of 0.01%. The device operates on a digital input and functions within a supply voltage range of 1.65 V to 1.95 V. It supports a single channel configuration and includes a shutdown feature. The component is rated for operation between -40°C and +85°C.

Feature Summary

Integrates smart amplifier capabilities with digital input interface
Provides high-fidelity audio amplification with low distortion characteristics
Supports efficient Class-D operation for mobile applications

Applications

Smartphone audio systems
Tablet multimedia modules
Portable media players

Procurement Notes

Verify the specific suffix YBGT against the manufacturer's official datasheet to confirm pinout and electrical specifications match your design requirements. Ensure compatibility with the intended digital audio interface protocol before integration. Cross-reference the DSBGA-36 package dimensions with your PCB footprint library to prevent assembly errors during manufacturing.

Selection Notes

Select this component when a compact mono amplifier is required for battery-powered devices operating at low voltages. The digital input interface simplifies system architecture by reducing analog signal paths. Consider the thermal performance and power delivery capabilities relative to the target speaker impedance to ensure optimal efficiency and sound quality in space-constrained enclosures.

Part Context

This part belongs to the TAS2564 series of smart audio amplifiers from Texas Instruments. These devices are designed for mobile platforms requiring high output power in minimal space. The series integrates protection features and digital control interfaces to streamline audio subsystem design for consumer electronics manufacturers seeking reliable performance.
