Product Detailed Parameters

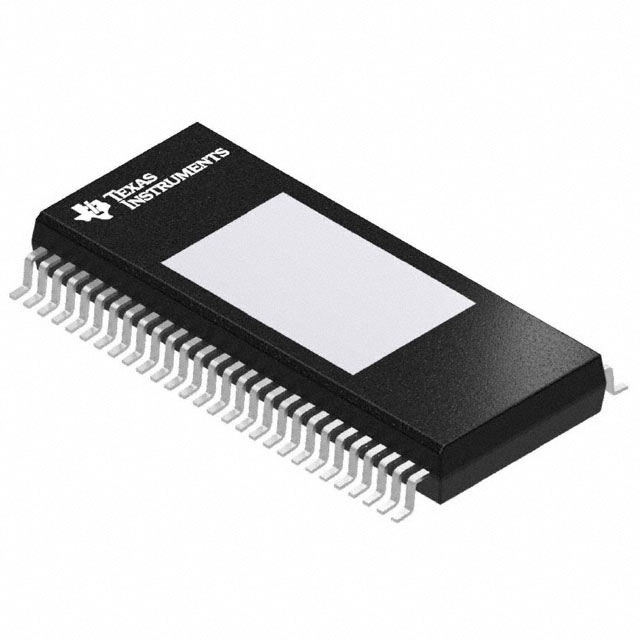

- Description：IC AMP D MONO/STER 350W 56HSSOP
- Series：-
- Mfr：Texas Instruments
- Package：Tube
- Type：Class D
- Output Type：1-Channel (Mono) or 2-Channel (Stereo)
- Max Output Power x Channels @ Load：350W x 1 @ 2Ohm; 220W x 1 @ 3Ohm; 175W x 1 @ 4Ohm
- Voltage - Supply：12V ~ 38V
- Features：-
- Mounting Type：Surface Mount
- Supplier Device Package：56-HSSOP
- Package / Case：56-PowerBSSOP (0.295", 7.50mm Width)
- Operating Temperature：0°C ~ 70°C
- Grade：-
- Qualification：-
Download product information
Overview
The TAS3251DKQ is a Texas Instruments audio amplifier IC in the TAS3251 series. It features a Class-D architecture supporting mono or stereo output configurations. The device operates within a supply voltage range of 12V to 36V and functions at temperatures between 0°C and +70°C. It utilizes an HSSOP-56 surface-mount package. Key electrical specifications include a maximum output power of 175W or 350W depending on load conditions, with a THD+N of 0.01%. It supports load impedances of 2 Ohms and 4 Ohms.
Feature Summary
- Class-D amplifier architecture for high-efficiency audio amplification
- Configurable for mono or stereo output channels
- Low total harmonic distortion plus noise performance
- Surface-mount HSSOP-56 packaging
Applications
- Audio amplifier circuits requiring mono or stereo output
- Systems utilizing 2 Ohm or 4 Ohm speaker loads
- Designs operating within 12V to 36V supply ranges
Procurement Notes
Verify the specific suffix 'DKQ' against the manufacturer's current datasheet to confirm package type and tube packaging details. Ensure compatibility with the required thermal management for the HSSOP-56 package. Confirm that the operating temperature range meets the application requirements. Cross-reference ordering information with official Texas Instruments documentation to avoid discrepancies.
Selection Notes
Select this component when a Class-D amplifier with configurable mono/stereo outputs is required. Consider the HSSOP-56 package size for PCB layout constraints. Verify that the 12V to 36V supply range aligns with the system power design. Evaluate the 0°C to +70°C operating temperature range against environmental conditions.
Part Context
The TAS3251DKQ belongs to the TAS3251 family of audio amplifiers from Texas Instruments. This series includes variants such as the TAS3251DKQR, which shares similar core functionalities but may differ in packaging or reel specifications. The family is designed for high-power audio applications requiring efficient Class-D operation.
Replacement Considerations
Consult the official datasheet for direct pin-to-pin replacements or functional equivalents within the TAS3251 series. Verify package compatibility and electrical specifications before substitution.
