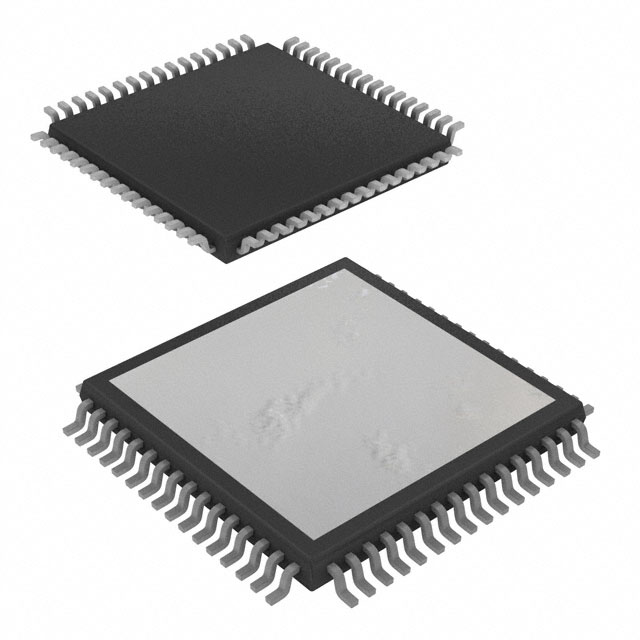

TAS5631PHD

Overview

The TAS5631PHD is a high-performance digital-input power stage manufactured by Texas Instruments. It delivers 300 watts of continuous stereo output power and up to 600 watts in mono configuration. The device utilizes PurePath HD technology to provide high-fidelity audio amplification with low distortion. It features a digital interface for direct connection to digital audio sources, eliminating the need for external digital-to-analog converters. The component is designed for robust thermal performance and efficient operation in demanding audio applications.

Feature Summary

• PurePath HD digital input architecture for high-fidelity audio processing
• High-power stereo and mono output capabilities
• Integrated digital signal processing for enhanced audio quality

Applications

• Home theater systems
• Professional audio equipment
• High-end car audio amplifiers

Procurement Notes

Verify the specific suffix and package type against the official datasheet to ensure compatibility with your design requirements. Confirm end-of-life status or availability through authorized distributors as supply conditions may vary. Cross-reference the part number with the manufacturer's latest documentation to avoid ordering errors due to similar naming conventions within the product family.

Selection Notes

Select this component when high-power digital amplification is required without external DACs. Ensure the system design supports the necessary digital audio interfaces and thermal management solutions. Compare with analog-input variants if digital processing is not needed in the signal chain. Verify voltage and current ratings match the speaker load requirements.

Part Context

This part belongs to the TAS5631 series of PurePath HD digital-input power stages from Texas Instruments. It is engineered for applications requiring significant output power with minimal external components. The series includes various package options and pin configurations to suit different form factors and thermal constraints in audio amplifier designs.

Replacement Considerations

Check for TAS5631BPHD or other suffixes in the same series for potential equivalents. Verify functional compatibility regarding pinout and electrical specifications before substitution.
