TAS5806MDCPR

Overview

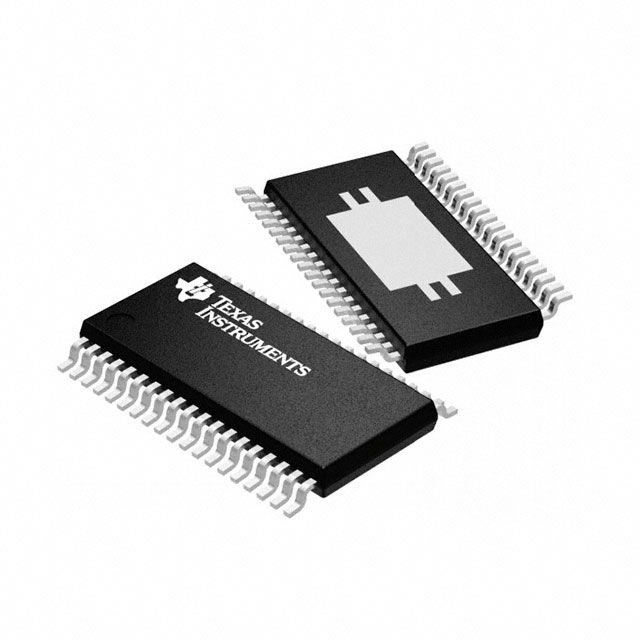

The TAS5806MDCPR is a Class-D audio amplifier manufactured by Texas Instruments, housed in an HTSSOP-38 package. It supports digital input and operates within a supply voltage range of 4.5 V to 26.4 V. The device delivers 23 W stereo output or 45 W mono output into 4 Ohm loads, with a THD+N of 0.03%. It features a 768 kHz bandwidth, 16.5 mA operating current, and functions between -25°C and +85°C.

Feature Summary

• Digital input interface for direct integration with audio sources
• High power efficiency via Class-D architecture
• Low distortion performance ensuring high-fidelity audio reproduction

Applications

• Portable speaker systems
• Smart home audio devices
• Car audio amplifiers

Procurement Notes

Verify the specific suffix DCPR against official datasheets to confirm package type and reel specifications. Ensure compatibility with required thermal management solutions for the HTSSOP-38 package. Confirm moisture sensitivity level handling procedures during assembly to prevent damage. Cross-reference ordering information with manufacturer documentation to avoid substitution errors.

Selection Notes

Select this component when high power output is required from a digital input source. Consider the HTSSOP-38 package size for board space constraints. Evaluate thermal dissipation requirements given the 45 W mono capability. Verify supply voltage ranges match the system design. Compare THD+N specifications against audio quality requirements.

Part Context

Part of the TAS5806M series, designed for high-performance audio applications. Shares architectural similarities with other Class-D amplifiers in the lineup but offers specific power and package configurations. Designed for integration into compact audio systems requiring digital control and high efficiency.

Replacement Considerations

TAS5805MPWP is a related variant with similar power ratings but uses a 28-HTSSOP package. Verify pinout and thermal characteristics before substitution.
