TAS6684QPHDRQ1

Overview

The TAS6684QPHDRQ1 is a four-channel digital input Class D audio amplifier designed for automotive applications. It operates within a supply voltage range of 4.5V to 45V and supports output power of 218W x 4 at 4Ω loads, or 118W x 4 at 8Ω loads. The device achieves a total harmonic distortion plus noise (THD+N) of 0.03% and a signal-to-noise ratio of 111dB. It functions reliably across an operating temperature range of -40°C to +125°C.

Feature Summary

• Integrates current detection and real-time load diagnostic capabilities for system monitoring.
• Includes built-in audio processing features alongside standard enable/shutdown control functions.
• Incorporates overvoltage protection mechanisms to ensure operational safety under varying electrical conditions.

Applications

• Automotive audio systems requiring high-power multi-channel amplification
• Vehicle infotainment center speaker drivers
• Surround sound configurations in luxury vehicle interiors

Procurement Notes

Verify the specific suffix QPHDR against the manufacturer's official datasheet to confirm package type and tape-and-reel specifications. Ensure the component meets AEC-Q100 automotive qualification standards required for your target application environment. Cross-reference the ordering part number with Texas Instruments documentation to validate availability and production lifecycle status before finalizing procurement plans.

Selection Notes

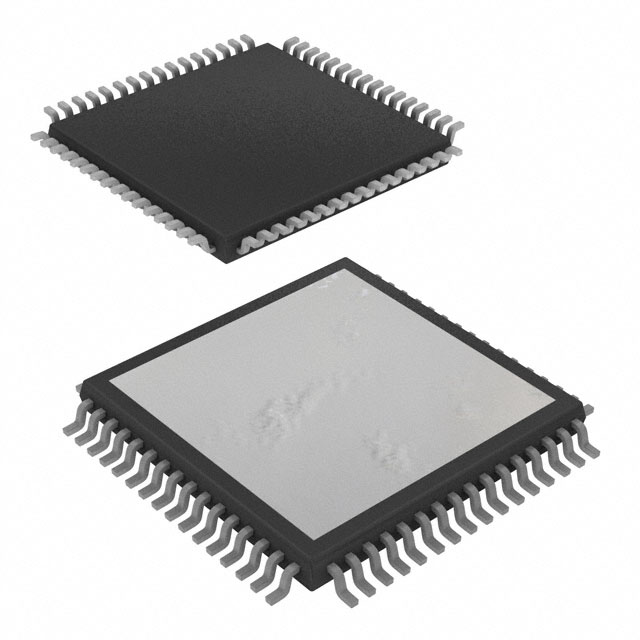

Select this component when designing automotive audio architectures that demand high channel count and significant power output per channel. The digital input interface simplifies integration with modern digital audio processors. Consider the HTQFP-64 package dimensions for PCB layout constraints. Evaluate the thermal performance requirements given the high power density and extended temperature range capabilities inherent to this automotive-grade device.

Part Context

This device belongs to Texas Instruments' portfolio of automotive-grade audio power amplifiers. It is engineered specifically for the demanding electrical and environmental conditions found in modern vehicles. The product line emphasizes high efficiency and advanced diagnostic features to support reliable operation in critical automotive audio subsystems.

Replacement Considerations

Consult the official Texas Instruments datasheet for confirmed substitute part numbers. Verify compatibility regarding pinout, thermal characteristics, and functional specifications before considering any alternative components for design updates or supply chain mitigation strategies.
