TB-8.192MBD-T

Oscillators Overview

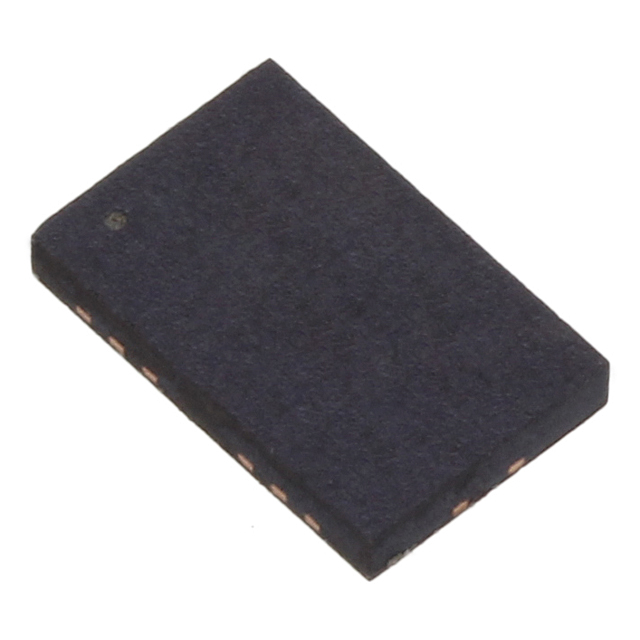

TB-8.192MBD-T is a silicon MEMS oscillator manufactured by TXC Corporation, operating at a frequency of 8.192 MHz with CMOS output format. It functions as a standard XO type device powered by a 3.3V supply voltage and supports an enable/disable function for power management. The component exhibits a frequency stability of ±50ppm and operates within a temperature range of -40°C to +85°C. It features a maximum supply current of 25mA and utilizes a 4-SMD, No Lead package measuring 2.50mm x 2.00mm with a height of 0.80mm.

Oscillators Feature Summary

• Utilizes silicon MEMS technology for robust clock generation
• Supports active low or high enable/disable control functionality
• Provides CMOS logic output signals
• Designed for surface mount assembly in compact footprints

Oscillators Applications

• Embedded systems requiring precise timing references
• Industrial equipment operating in extended temperature ranges
• Consumer electronics utilizing standard CMOS interfaces
• Communication modules needing stable clock sources

Oscillators Procurement Notes

Verify the specific suffix and voltage requirements against design specifications before ordering. Confirm availability status as this component may be discontinued or subject to limited supply constraints. Ensure compatibility with existing PCB footprint dimensions and soldering profiles. Cross-reference manufacturer documentation for any recent product change notices or lifecycle updates.

Oscillators Selection Notes

Select this model when a 3.3V supply and ±50ppm stability are required for 8.192 MHz applications. Consider the 2.50mm x 2.00mm package size for space-constrained designs. Evaluate the enable/disable feature if power efficiency during idle states is critical. Compare against other MEMS options if lower phase noise or different voltage levels are needed.

Oscillators Part Context

This part belongs to the TB series of MEMS oscillators from TXC Corporation. It represents a silicon-based alternative to traditional quartz crystals, offering improved shock resistance and smaller form factors. The series typically includes various frequency and stability options tailored for digital circuit timing needs.

Oscillators Replacement Considerations

TD-8.192MBD-T is listed as a related part number within the same manufacturer's portfolio.
