TB0768C

Overview

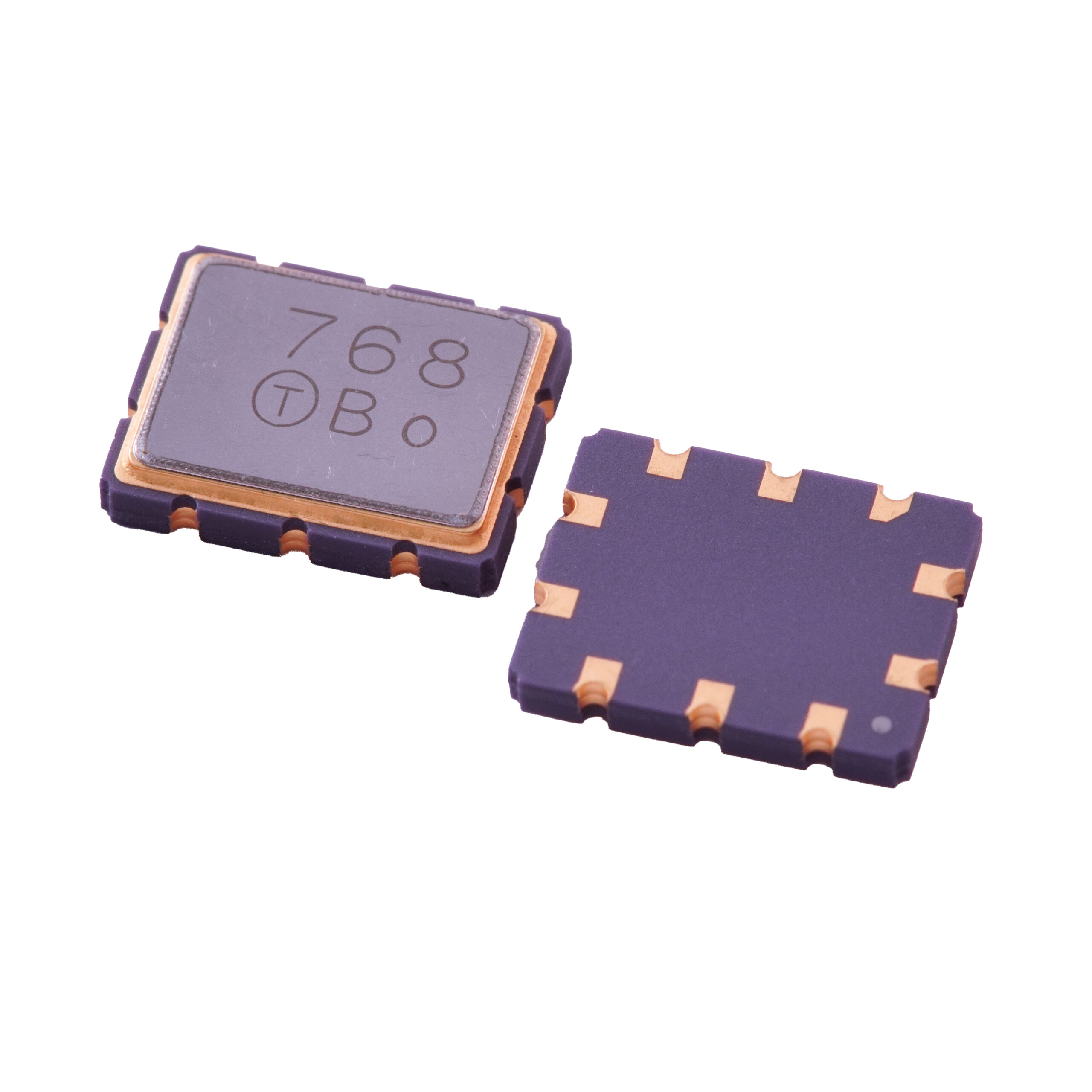

The TB0768C is a Surface Acoustic Wave (SAW) filter manufactured by Tai-Saw Technology Co., Ltd. It operates at a center frequency of 109 MHz with a bandwidth of 35 kHz and an insertion loss of 6 dB. The component is housed in a 10-SMD, no-lead package suitable for surface mount applications.

Feature Summary

• Surface acoustic wave technology for RF signal filtering
• Designed for wireless communication applications

Applications

• Wireless communication systems

Procurement Notes

Verify the manufacturer datasheet to confirm electrical specifications such as insertion loss and bandwidth match system requirements. Ensure the 10-SMD package type is compatible with the intended PCB layout and assembly process before finalizing procurement decisions.

Selection Notes

Select this component when a SAW filter with a 109 MHz center frequency and 35 kHz bandwidth is required for wireless applications. Consider the 6 dB insertion loss and SMD packaging constraints during circuit design and board space planning.

Part Context

Tai-Saw Technology specializes in SAW and BAW components for mobile phones, base stations, and wireless LANs. This part belongs to their RF SAW filter series, supporting high-frequency signal processing needs in consumer electronics and telecommunications infrastructure.

Replacement Considerations

No public substitute part numbers are confirmed in available documentation.
