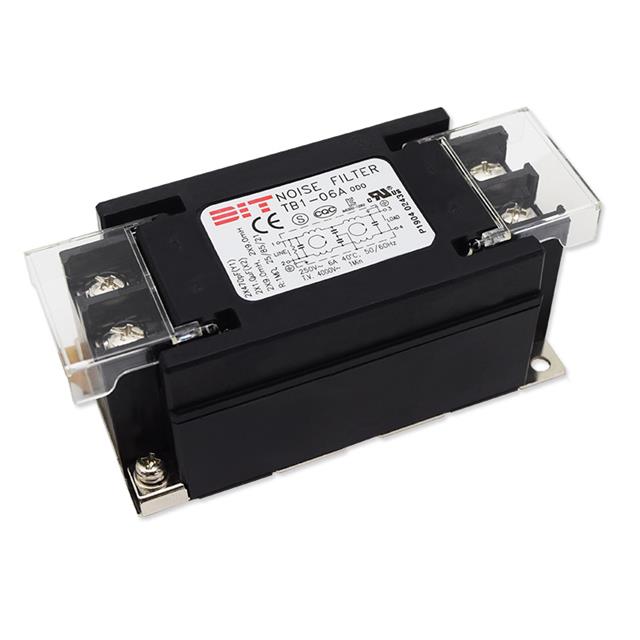

TB1-06A080

$23.72

Description：LINE FILTER 250VAC/VDC 6A CHASS
Series：TB1
Mfr：DIT
Package：Box

SKU:607cb4c19267 Category: Power Line Filter Modules Brand: DIT

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TB1-06A080 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists DIT. Its product description is LINE FILTER 250VAC/VDC 6A CHASS. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for TB1-06A080

Description：LINE FILTER 250VAC/VDC 6A CHASS
Series：TB1
Mfr：DIT
Package：Box
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：250V
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CQC, cURus, cCSAus, ENEC, SEMKO
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for TB1-06A080

TB1-06A080

Power Line Filter Modules Overview

The TB1-06A080 is a single-phase EMC/EMI line filter module manufactured by DIT. It is rated for a current of 6 A and operates at voltages up to 250V. The unit supports frequencies in the 50 ~ 60Hz range and utilizes a two-stage filtering architecture. Connection is facilitated via terminal block interfaces, ensuring secure integration into power supply lines for noise suppression.

Power Line Filter Modules Feature Summary

Two-stage filtering architecture for enhanced noise attenuation
Terminal block connection method for secure wiring
Single-phase design optimized for standard AC power lines

Power Line Filter Modules Applications

General-purpose electromagnetic interference protection
Power line noise suppression for electronic equipment
EMC compliance enhancement in AC power circuits

Power Line Filter Modules Procurement Notes

Verify the specific manufacturer datasheet to confirm exact electrical ratings and physical dimensions before integration. Ensure the terminal block type matches your existing wiring infrastructure. Cross-reference the part number with official DIT documentation to validate compatibility with your system's voltage and current requirements.

Power Line Filter Modules Selection Notes

Select this component when a single-phase solution is required for general-purpose EMI reduction. The two-stage design offers robust filtering capabilities for standard 50/60Hz applications. Consider the terminal block interface for ease of installation in modular setups requiring reliable electrical connections.

Power Line Filter Modules Part Context

This component belongs to the category of power line filter modules designed for electromagnetic compatibility. It addresses common noise issues in single-phase AC systems. The module serves as a critical interface between the power source and sensitive loads, mitigating conducted emissions.
