TB1-06A080H

Power Line Filter Modules Overview

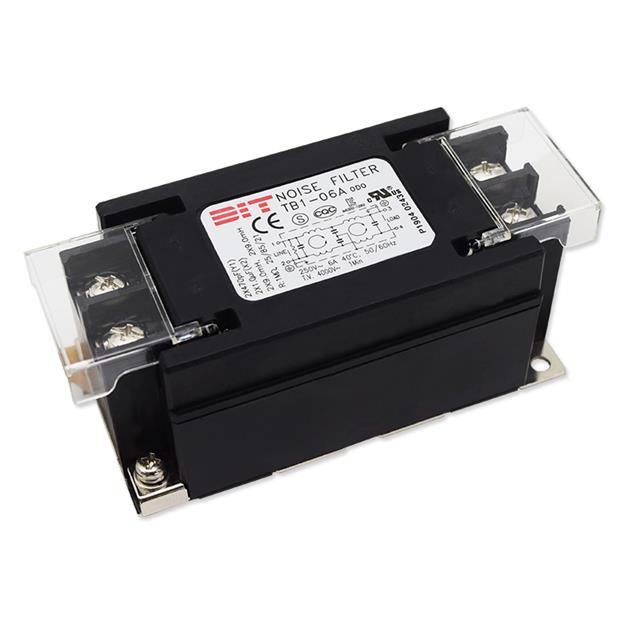

The TB1-06A080H is a single-phase EMC/EMI line filter module manufactured by Dong Il Technology. It features a two-stage filtering design rated for 6 A current and 250 V AC at 50/60 Hz frequencies. The component utilizes terminal connections to facilitate easy installation within electrical systems.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture
• Terminal connection interface
• Differential and common mode suppression

Power Line Filter Modules Applications

• Single-phase power line noise reduction
• EMC compliance in electronic equipment
• Industrial control units

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version from Dong Il Technology to confirm exact attenuation curves and mounting dimensions. Ensure the operating environment temperature aligns with the component's thermal ratings. Confirm that the terminal type matches the system wiring requirements before procurement.

Power Line Filter Modules Selection Notes

Select this model for applications requiring compact single-phase filtering solutions. The two-stage design offers enhanced noise suppression compared to single-stage alternatives. Verify that the 6 A rating meets the load requirements of the target circuit without exceeding thermal limits.

Power Line Filter Modules Part Context

This component belongs to the TB1 series of line filters produced by Dong Il Technology. These modules are designed for integration into power supplies and industrial electronics to mitigate electromagnetic interference. The series typically includes various current ratings and voltage specifications.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes with identical 6 A, 250 V AC ratings and two-stage topology. Ensure replacement parts maintain compatible terminal configurations and physical footprint constraints.
