TB1-06A0D0H

Power Line Filter Modules Overview

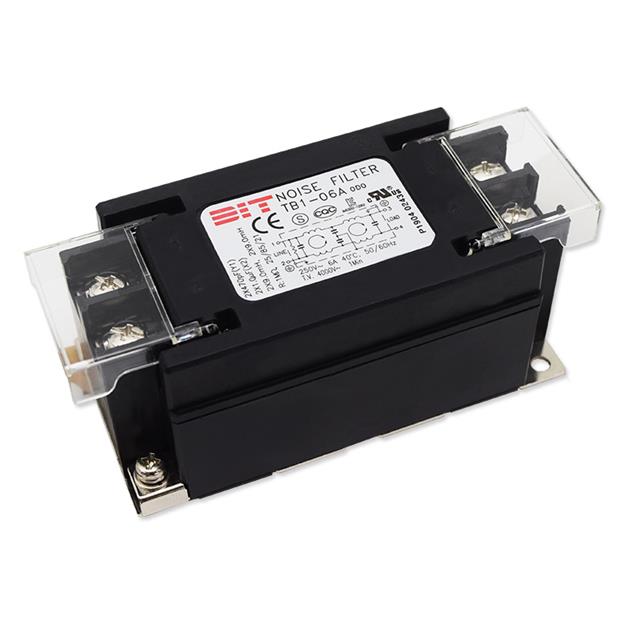

The TB1-06A0D0H is a single-phase EMC/EMI line filter module manufactured by DIT. It is rated for a current of 6 A and operates at voltages up to 250 VAC within the 50 to 60 Hz frequency range. The device features a two-stage terminal block design intended for chassis mounting. This configuration provides effective suppression of electromagnetic interference through both differential mode and common mode filtering mechanisms, ensuring compliance with emission standards in general-purpose electrical applications.

Power Line Filter Modules Feature Summary

• Two-stage terminal block architecture for enhanced signal integrity
• Effective attenuation of both differential and common mode noise
• Chassis-mountable design facilitating secure installation

Power Line Filter Modules Applications

• General-purpose electronic equipment requiring EMI suppression
• Industrial control systems needing reliable power line filtering
• Consumer electronics adhering to strict emission regulations

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official DIT documentation to confirm exact rating configurations. Ensure compatibility with existing chassis mounting hardware and terminal block specifications. Cross-reference datasheet parameters for voltage and current limits before integration into final assemblies to prevent operational failures.

Power Line Filter Modules Selection Notes

Select this component when single-phase filtering is required for low-current applications up to 6 A. The two-stage design offers superior noise reduction compared to single-stage alternatives. Consider the physical dimensions and terminal block type during PCB or panel layout planning to ensure proper fit and electrical connectivity.

Power Line Filter Modules Part Context

This model belongs to the TB1 series of power line filter modules from DIT. These components are engineered for robust electromagnetic compatibility in compact spaces. The series typically includes variants with different current ratings and voltage specifications to suit diverse industrial and commercial power supply requirements.

Power Line Filter Modules Replacement Considerations

Consult official DIT substitution guides for compatible equivalents. Verify that any alternative maintains identical current, voltage, and frequency ratings. Ensure mechanical mounting interfaces and terminal block configurations match to avoid redesign efforts.
