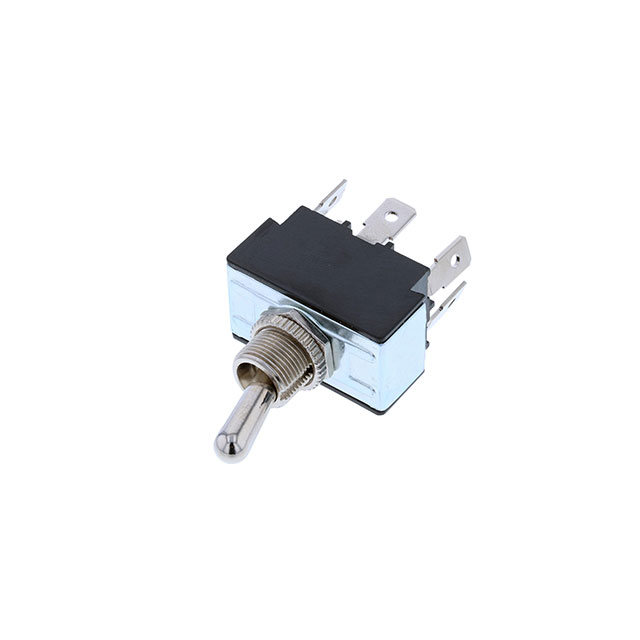

TB1-2H-AC-1

TB1-2H-AC-1 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is VAC DPDT ON-OFF-(ON), 15/32. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for TB1-2H-AC-1

• Description：VAC DPDT ON-OFF-(ON), 15/32
• Series：TB1
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：DPDT
• Switch Function：On-Off-Mom
• Current Rating (Amps)：10A (AC)
• Voltage Rating - AC：250 V
• Voltage Rating - DC：-
• Actuator Type：Standard Round
• Actuator Length：16.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Panel Cutout Dimensions：Circular - 12.20mm Dia
• Bushing Thread：15/32-32
• Ingress Protection：-
• Features：-
• Operating Temperature：-

Toggle Switches datasheet and documents for TB1-2H-AC-1
