TB1374A

Overview

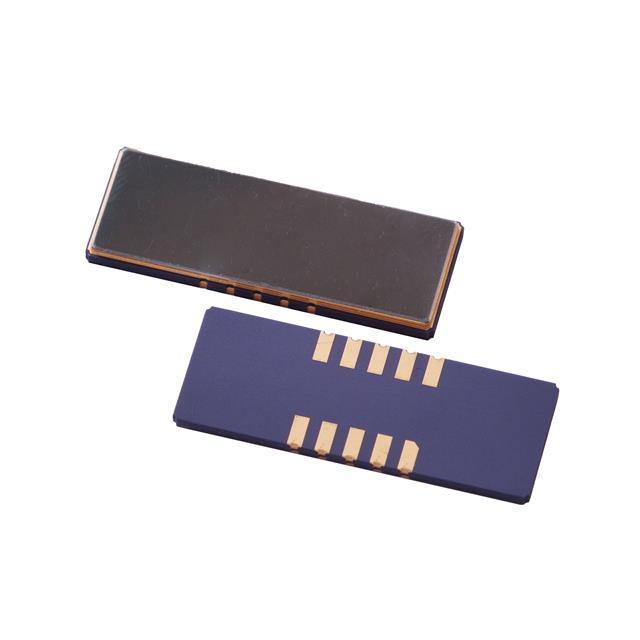

The TB1374A is a Surface Acoustic Wave (SAW) bandpass filter manufactured by Tai-Saw Technology Co., Ltd. (TST). It operates at a center frequency of 70 MHz with a bandwidth of 70 MHz and an insertion loss of 7.4 dB. The component is housed in a 10-SMD, no-lead package with dimensions of 19.00 mm x 6.50 mm. Designed for RF applications, it supports base station infrastructure.

Feature Summary

• Surface Acoustic Wave technology for signal filtering
• Bandpass configuration for specific frequency selection
• Surface mount construction for automated assembly

Applications

• Base stations
• Wireless communication systems

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before integration. Confirm that the 10-SMD package dimensions and lead-free status meet your PCB layout requirements. Ensure the 7.4 dB insertion loss aligns with your system's power budget. Validate compatibility with your manufacturing process for surface-mount assembly.

Selection Notes

Select this component when a 70 MHz center frequency SAW filter is required for base station applications. Consider the 7.4 dB insertion loss impact on signal strength. Evaluate the 19.00 mm x 6.50 mm footprint against available board space. Compare performance metrics with alternative TST SAW filters if different bandwidth or loss characteristics are needed.

Part Context

Tai-Saw Technology Co., Ltd. specializes in SAW and BAW components for wireless communications. The TB1374A belongs to their RF SAW filter series, designed for high-performance filtering in cellular and broadcast infrastructure. TST supplies these components to OEMs and ODMs globally.

Replacement Considerations

No public substitute part numbers are confirmed for the TB1374A. Consult TST technical support for potential equivalents.
