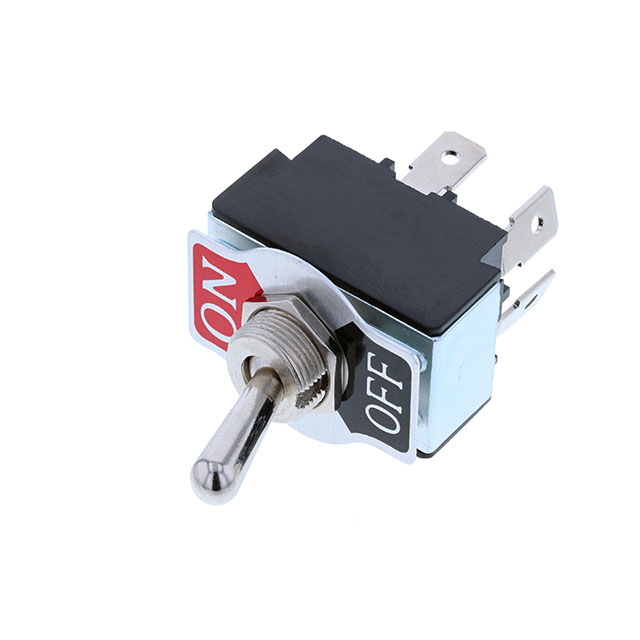

TB2-2B-DC-1

TB2-2B-DC-1 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SWITCH TOGGLE DPST-NO 20A 12V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for TB2-2B-DC-1

• Description：SWITCH TOGGLE DPST-NO 20A 12V
• Series：TB2
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：DPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：20A (DC)
• Voltage Rating - AC：-
• Voltage Rating - DC：12 V
• Actuator Type：Standard Round
• Actuator Length：17.70mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Panel Cutout Dimensions：Circular - 12.20mm Dia
• Bushing Thread：M12 x 0.75
• Ingress Protection：-
• Features：-
• Operating Temperature：0°C ~ 55°C

Toggle Switches datasheet and documents for TB2-2B-DC-1
