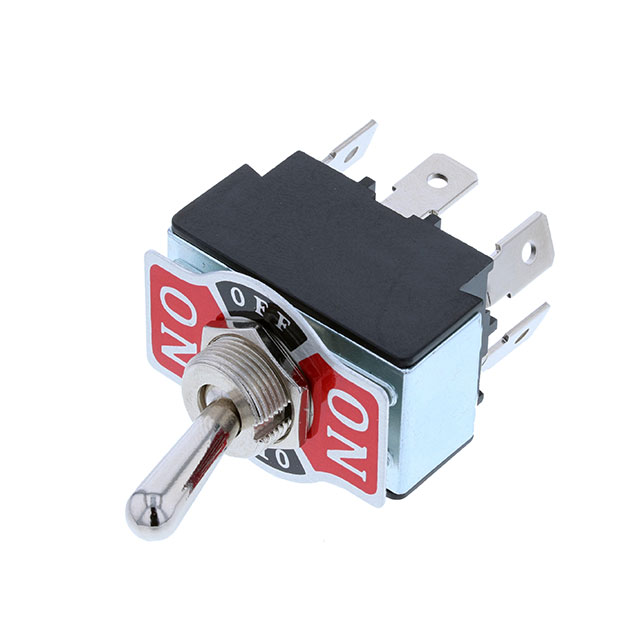

TB2-2F-DC-1

TB2-2F-DC-1 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SWITCH TOGGLE DPDT 20A 12V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for TB2-2F-DC-1

• Description：SWITCH TOGGLE DPDT 20A 12V
• Series：TB2
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：DPDT
• Switch Function：On-Off-On
• Current Rating (Amps)：20A (DC)
• Voltage Rating - AC：-
• Voltage Rating - DC：12 V
• Actuator Type：Standard Round
• Actuator Length：18.40mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Panel Cutout Dimensions：Circular - 12.20mm Dia
• Bushing Thread：M12 x 0.75
• Ingress Protection：-
• Features：-
• Operating Temperature：0°C ~ 55°C

Toggle Switches datasheet and documents for TB2-2F-DC-1
