TB4-016H

Power Line Filter Modules Overview

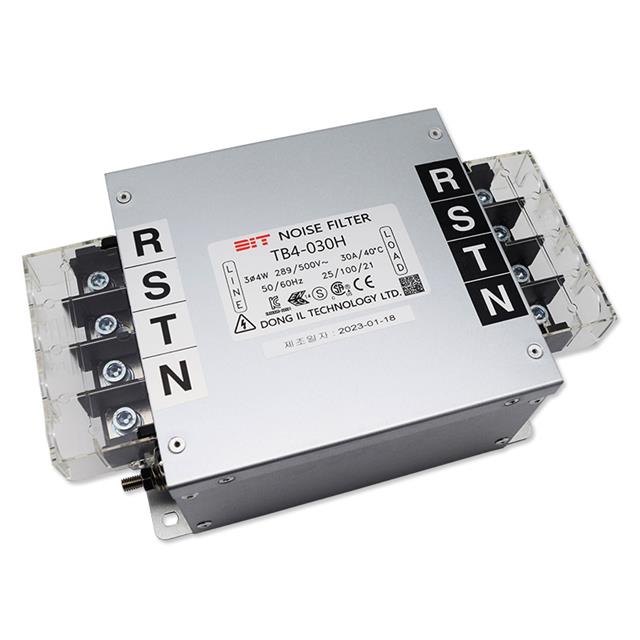

The TB4-016H is a three-phase (Wye) EMC/EMI line filter module manufactured by DIT. It is rated for 16 A current and operates at 50 ~ 60Hz frequencies. The unit features chassis mounting and utilizes epoxy resin potting for internal components. It provides significant attenuation against high-voltage pulses and offers effective shielding through its metal casing. The filter ensures excellent filtering characteristics for both differential mode and common mode noise.

Power Line Filter Modules Feature Summary

• Epoxy resin potting for structural integrity
• Metal casing for effective electromagnetic shielding
• High voltage pulse attenuation capability
• Superior differential and common mode filtering

Power Line Filter Modules Applications

• CNC machine tools
• Inverters and converters
• Telecommunications equipment
• Factory automation devices
• Elevator systems

Power Line Filter Modules Procurement Notes

Verify the specific model suffix and physical dimensions against the official DIT datasheet before procurement. Confirm that the chassis mounting style matches the enclosure design. Ensure the 16A rating and Wye configuration align with the system's electrical requirements. Check for CE, SEMKO, and ENEC safety certifications if required by regional regulations. Validate compatibility with the target frequency range of 50 to 60Hz.

Power Line Filter Modules Selection Notes

Select this component when robust industrial-grade filtering is required for three-phase power lines. The metal housing and epoxy potting make it suitable for harsh environments where vibration or moisture resistance is necessary. Consider the chassis mount form factor for integration into existing control panels. Evaluate the 16A capacity against peak load currents to ensure adequate headroom. Verify space constraints for the chassis installation footprint.

Power Line Filter Modules Part Context

This component belongs to the TB6 series of three-phase filters from DIT. It shares design principles with models like the TB6-2016AA31 but is distinguished by its specific 16A rating and chassis mount configuration. The series is characterized by epoxy potting and metal shielding for industrial durability.

Power Line Filter Modules Replacement Considerations

Cross-reference with other TB6 series models such as TB6-2016AA31 for similar performance profiles. Verify that substitute parts maintain the same three-phase Wye configuration and 16A current rating. Ensure mechanical mounting dimensions are compatible with existing chassis cutouts. Confirm that the replacement meets the same safety certification standards.
