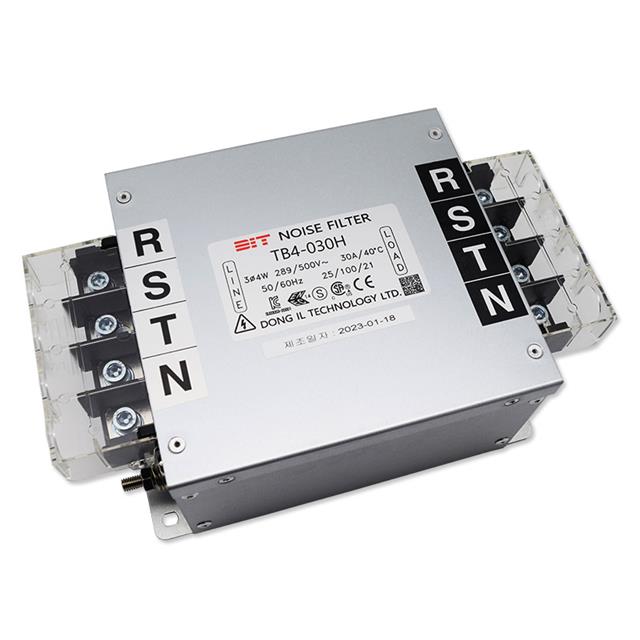

TB4-030H is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists DIT. Its product description is LINE FILTER 30A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for TB4-030H
- Description：LINE FILTER 30A CHASSIS MOUNT
- Series：TB4
- Mfr：DIT
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：30 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：290 V
- Voltage - Rated AC (Phase to Phase)：500 V
Power Line Filter Modules datasheet and documents for TB4-030H
Power Line Filter Modules Overview
The TB4-030H is a three-phase AC power line filter module designed for EMC/EMI suppression. It features a single-stage configuration with a Y-connection topology. The unit is rated for 30 A continuous current at 50 to 60 Hz frequencies. Electrical ratings include 290 V phase-to-ground/neutral and 500 V phase-to-phase. The component utilizes a terminal block interface for connection.
Power Line Filter Modules Feature Summary
- Provides effective attenuation of high-voltage pulses
- Offers superior filtering characteristics for both differential and common mode noise
- Enclosed in a metal housing for enhanced shielding effectiveness
Power Line Filter Modules Applications
- Industrial equipment such as CNC machines
- Inverters and converters
- Telecommunications equipment
- Factory automation devices
- Elevator systems
Power Line Filter Modules Procurement Notes
Verify the specific ordering suffix against manufacturer documentation to ensure correct voltage and current ratings. Confirm that the terminal block interface matches the installation requirements. Check for applicable safety certifications such as CE or SEMKO+ENEC compliance before procurement.
Power Line Filter Modules Selection Notes
Select this model based on the 30 A current requirement and 500 V phase-to-phase rating. Ensure the application environment supports the specified frequency range. Consider the metal enclosure for necessary shielding levels in industrial settings.
Power Line Filter Modules Part Context
This component belongs to the TB4 series of power line filter modules manufactured by DIT. These units are engineered for robust electromagnetic interference reduction in demanding electrical environments, providing reliable performance for sensitive industrial loads.
Power Line Filter Modules Replacement Considerations
Consult official DIT documentation for confirmed substitute part numbers. Verify compatibility regarding current capacity, voltage ratings, and physical mounting dimensions before substitution.
