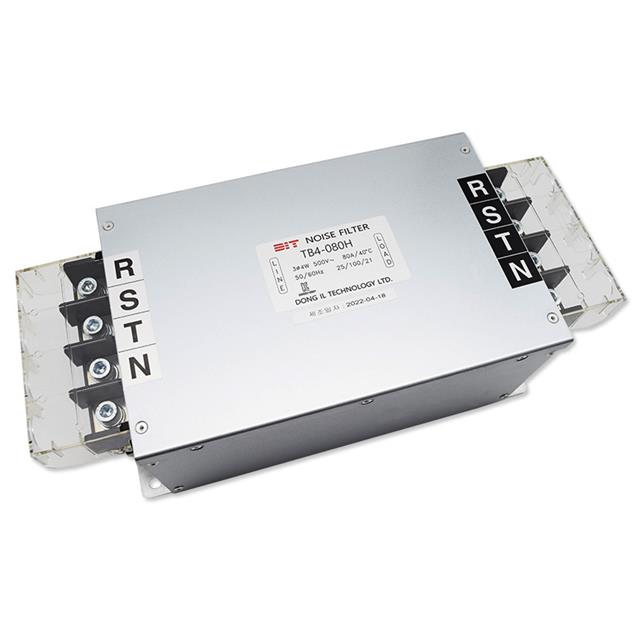

TB4-080HR is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists DIT. Its product description is LINE FILTER 80A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for TB4-080HR
- Description：LINE FILTER 80A CHASSIS MOUNT
- Series：TB4
- Mfr：DIT
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：80 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：290 V
- Voltage - Rated AC (Phase to Phase)：500 V
Power Line Filter Modules datasheet and documents for TB4-080HR
Power Line Filter Modules Overview
The TB4-080HR is a three-phase (Wye) EMC/EMI line filter module designed for single-phase applications. It supports a current rating of 80 A and operates at frequencies between 50 Hz and 60 Hz.
Power Line Filter Modules Feature Summary
- Provides electromagnetic interference suppression for power lines
- Designed for three-phase Wye configurations
Power Line Filter Modules Applications
- Power line filtering in industrial equipment
- EMC compliance for electrical systems
Power Line Filter Modules Procurement Notes
Verify the exact specifications from the product datasheet, as images may be representations only. Confirm compatibility with specific voltage and current requirements before procurement.
Power Line Filter Modules Selection Notes
Select this component for applications requiring robust EMI suppression in three-phase Wye systems. Ensure the 80 A current rating aligns with system demands.
Power Line Filter Modules Part Context
This part belongs to the category of power line filter modules, specifically engineered for electromagnetic compatibility in electrical distribution networks.
