TB4-100HR

Power Line Filter Modules Overview

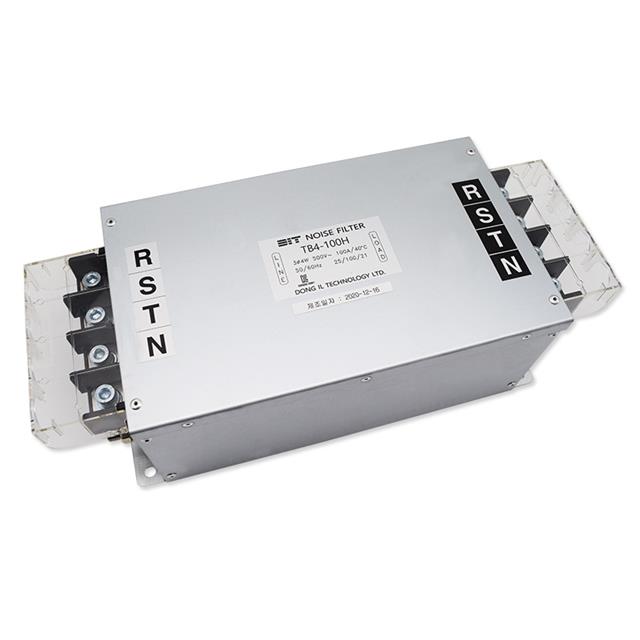

The TB4-100HR is a three-phase (Wye) EMC/EMI line filter module manufactured by DIT. It is rated for a current of 100 A and operates at frequencies between 50 Hz and 60 Hz. The unit utilizes a single-stage design with terminal block connections, intended for integration into power distribution systems to mitigate electromagnetic interference.

Power Line Filter Modules Feature Summary

• Provides effective attenuation of high-voltage pulses
• Features metal housing for superior shielding performance
• Delivers excellent filtering characteristics for both differential-mode and common-mode noise

Power Line Filter Modules Applications

• Industrial equipment such as CNC machines
• Inverters and converters
• Telecommunications equipment
• Factory automation devices
• Elevator systems

Power Line Filter Modules Procurement Notes

Verify the specific electrical ratings against the official datasheet before procurement. Confirm that the terminal block interface matches the installation requirements. Ensure the Wye configuration aligns with the system topology. Check for required safety certifications such as CE or SEMKO+ENEC depending on regional compliance needs.

Power Line Filter Modules Selection Notes

Select this model when a 100 A capacity is required for three-phase applications. Consider the terminal block mounting style for ease of integration. Evaluate the need for high-voltage pulse attenuation in the specific environment. Ensure the operating frequency range of 50-60 Hz matches the local power grid standards.

Power Line Filter Modules Part Context

This component belongs to the DIT power line filter series, designed for industrial environments. It addresses electromagnetic compatibility challenges in sensitive electronic systems. The product line emphasizes robust construction and reliable noise suppression for critical infrastructure.

Power Line Filter Modules Replacement Considerations

Consult official DIT documentation for direct substitute part numbers. Verify that any replacement maintains the 100 A rating and three-phase Wye configuration. Ensure physical dimensions and terminal types are compatible with existing installations.
