TB4-600HR

Power Line Filter Modules Overview

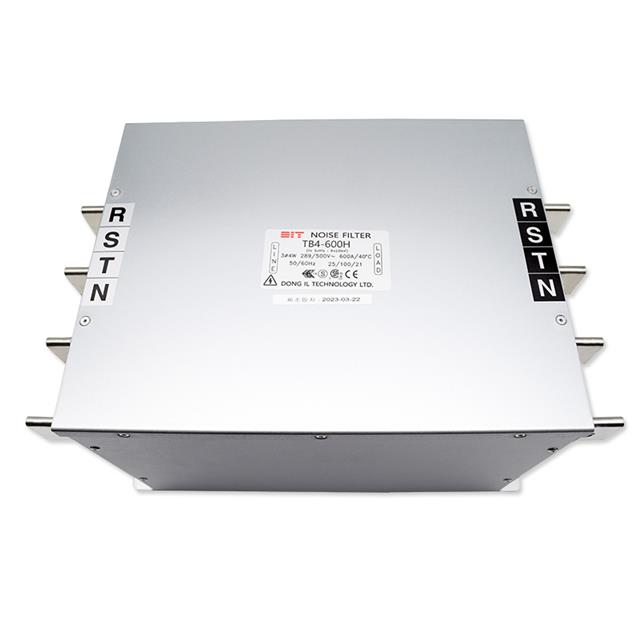

The TB4-600HR is a chassis-mount EMC/EMI line filter module manufactured by DIT. It is rated for a continuous current of 600 A and operates at frequencies between 50 Hz and 60 Hz. The unit features approvals from CE, CSA, ENEC, and SEMKO agencies. Its operating temperature range extends from -25°C to unspecified upper limits as per standard industrial classifications.

Power Line Filter Modules Feature Summary

• Provides significant attenuation against high-voltage pulses
• Features metal housing for effective electromagnetic shielding
• Delivers excellent filtering characteristics for both differential-mode and common-mode noise

Power Line Filter Modules Applications

• Industrial equipment such as CNC machines
• Inverters and converters
• Telecommunications equipment
• Factory automation (FA) devices
• Elevator systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for complete thermal derating curves and mounting torque specifications. Confirm that the 600 A rating aligns with your system's peak load requirements. Ensure the chassis mounting holes match your enclosure design. Check for any regional regulatory updates regarding the listed certification bodies before final procurement.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtration is required in compact chassis environments. The metal enclosure offers superior shielding compared to plastic alternatives. Consider the -25°C lower limit if operating in cold industrial settings. Verify that the physical dimensions fit within the available panel space alongside other power components.

Power Line Filter Modules Part Context

This model belongs to the TB4 series of line filters designed for heavy-duty industrial applications. It complements other models in the TB6 series which offer different current ratings. The series is characterized by epoxy potting for durability and robust pulse handling capabilities suitable for demanding power electronics environments.

Power Line Filter Modules Replacement Considerations

Cross-reference with TB6 series variants for similar form factors but verify current ratings carefully. Ensure substitute parts maintain the same CE, CSA, ENEC, and SEMKO certifications. Check mechanical mounting compatibility and terminal configurations before switching suppliers or models.
